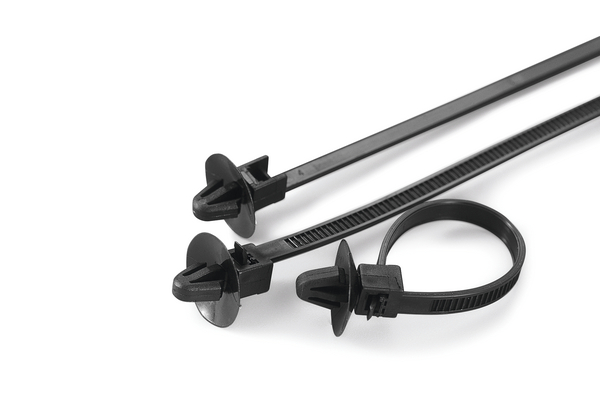

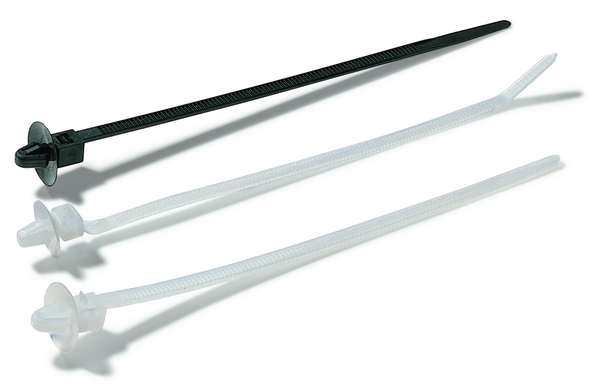

1-Piece Fixing Ties with Arrowhead, with Disc, releasable RT50SD6

1-Piece Fixing Tie with Arrowhead, with Disc, releasable, for round holes, Cikkszám: 111-85480

Tulajdonságok

  • Easy to install without the need for a tool

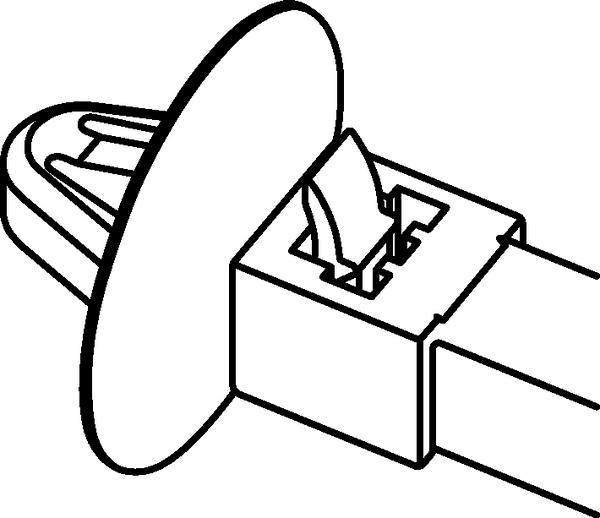

  • Arrowhead simply locks into place
  • Disc adjusts tie for pressures from various directions and minimises access of dust and dirt
  • Cable tie head always situated in a defined position
  • Releasable and therefore reusable

Tanúsítványok

Felhasználás

With a diverse range of fixing possibilities are ideal for use in many different industries, including automotive, aerospace and panel building.

1-Piece Fixing Tie with Arrowhead, with Disc, releasable, for round holes az alábbi iparágban használhatóak

  • Automotive Industry Automotive Industry
  • Electronics Industry Electronics Industry
  • Defence Industry Defence Industry
Application Tool MK3PNSP2, MK3SP, MK6, MK7HT, MK7P, MK20, MK21, EVO7, EVO9
Colour Black (BK)
Description Short (BMEcat) (max. 150 characters) Releasable 1-Piece Fixing Tie with Arrowhead and Disc PA66HS 160x5 mm black
Fixation Method Arrowhead
Identification Plate Position none
Pack Cont. 100pcs.
Package Quantity per pcs.
PART DESCRIPTION RT50SD6-PA66HS-BK
Product Family 1-Piece Fixing Tie with Arrowhead, with Disc, releasable, for round holes
Product Group 1-Piece Fixing Ties with Arrowhead, with Disc, releasable
Releasable Closure (Yes/No) Yes
Tie Closure plastic pawl
Type RT50SD6.HB3P
Bundle ∅ max. 31.0mm
Bundle ∅ min. 1.5mm
Disc ∅ 18.0mm
for Hole ∅ (FH) 6.3 - 7.5 mm
for Panel Thickness min - max 0.6 - 1.8 mm
Height (H) 18.0mm

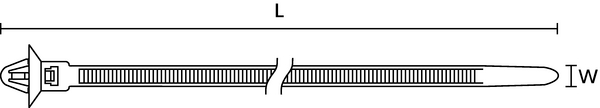

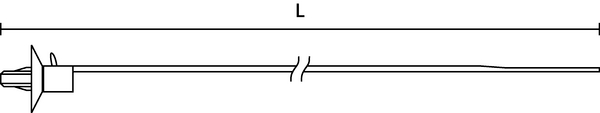

Length (L) 160.0mm
Min.Tensile Strength 225N
Thickness (T) 1.5mm
Width (W) 5.0mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Hazardous good No
Material Polyamide 6.6, heat stabilised (PA66HS)
Operating Temperature - °C -40 °C to +105 °C, (+105 °C for 500 h)
Specifications
EAN / GTIN 5022660118463
Packaging 1 - Height (m) 0.055m
Packaging 1 - Length (m) 0.365m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00422
Packaging 1 - Weight (kg) 0.161kg
Packaging 1 - Width (m) 0.21m
Packaging 3 - Height (m) 0.204m
Packaging 3 - Length (m) 0.591m
Packaging 3 - Qty 3000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.048
Packaging 3 - Weight (kg) 5.632kg
Packaging 3 - Width (m) 0.398m
Packaging 4 - Height (m) 1.164m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 60000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.117
Packaging 4 - Weight (kg) 133.64kg
Packaging 4 - Width (m) 0.8m
Weight 0.161kg
ETIM 6.0 EC000046
ETIM 7.0 Key EC000046
