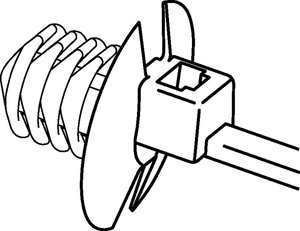

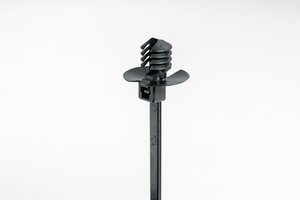

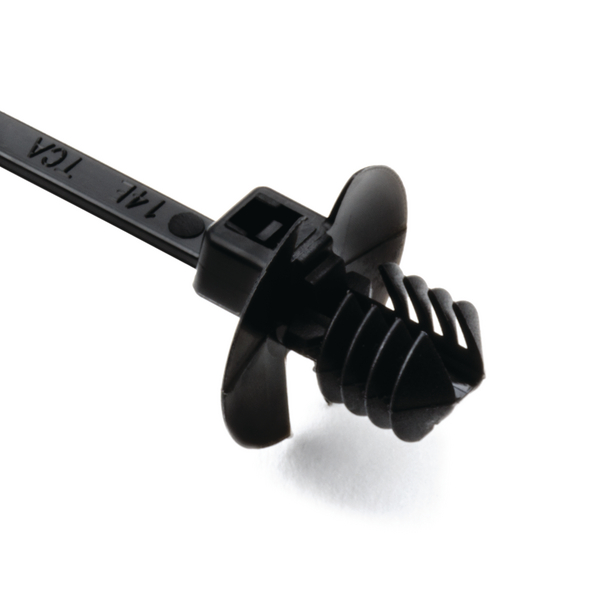

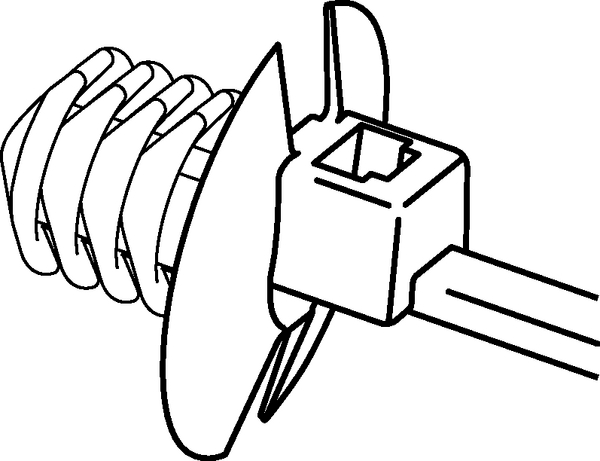

1-Piece Fixing Ties with Fir Tree, with Disc, for Round Holes T18RDP5

Fir Tree Parts FT5, Cikkszám: 150-55610

Tulajdonságok

  • Cable tie head always situated in defined position
  • Easy to assemble without the need for a tool
  • Disc adjusts tie for pressure from various directions and minimises ingress of dust, dirt and water
  • Fir tree foot part can be used for a variety of panel thicknesses
  • Suitable for use within threaded holes

Tanúsítványok

Felhasználás

Primarily designed for fixing cable harnesses in the automotive industry, their simplicity and ease of use has resulted in these parts being used in other industries, for example aviation, switch gear and white goods manufacturing.

Fir Tree Parts FT5 az alábbi iparágban használhatóak

Anti rotation (Yes / No) NO
Application Tool MK3PNSP2, MK3SP, MK20, EVO7
Colour Black (BK)
Description Short (BMEcat) (max. 150 characters) 1-Piece Fixing Tie with Fir Tree and Disc PA66 110x2.5 black
Fixation Method Fir Tree
Fixing Hole Shape Circular
GLOBAL PART DESCRIPTION T18RDP5-PA66-BK
Identification Plate Position none
Pack Cont. 500pcs.
Package Quantity per pcs.
Product Family Fir Tree Parts FT5
Product Group 1-Piece Fixing Ties with Fir Tree, with Disc, for Round Holes
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Type T18RDP5.NB6P
Variant Inside Serrated
Bundle ∅ max. 20.0mm
Bundle ∅ min. 1.5mm
Disc ∅ 13.0mm
for Hole ∅ (FH) 4.9 - 5.1 mm
for Panel Thickness min - max 3 - 4 mm
for Panel Thickness min - max 0.1 - 0 "
Length (L) 110.0mm
Length of Fir Tree 7.8mm
Min.Tensile Strength 80N
Thickness (T) 1.1mm
Width (W) 2.5mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Hazardous good No
Material Polyamide 6.6 (PA66)
Operating Temperature - °C -40 °C to +85 °C, (+105 °C, 500 h)
Specifications
EAN / GTIN 5022660320224
Packaging 1 - Height (m) 0.106m
Packaging 1 - Length (m) 0.249m
Packaging 1 - Qty 500
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00486
Packaging 1 - Weight (kg) 0.207kg
Packaging 1 - Width (m) 0.184m
Packaging 3 - Height (m) 0.364m
Packaging 3 - Length (m) 0.563m
Packaging 3 - Qty 12000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0777
Packaging 3 - Weight (kg) 5.929kg
Packaging 3 - Width (m) 0.379m
Packaging 4 - Height (m) 1.236m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 144000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.187
Packaging 4 - Weight (kg) 92.148kg
Packaging 4 - Width (m) 0.8m
Weight 0.207kg
ETIM 5.0 EC000046
ETIM 6.0 EC000046
UNSPSC Key 39121717

Maradjon velünk kapcsolatban!


Update: 10/11/2018 © HellermannTyton 2018
