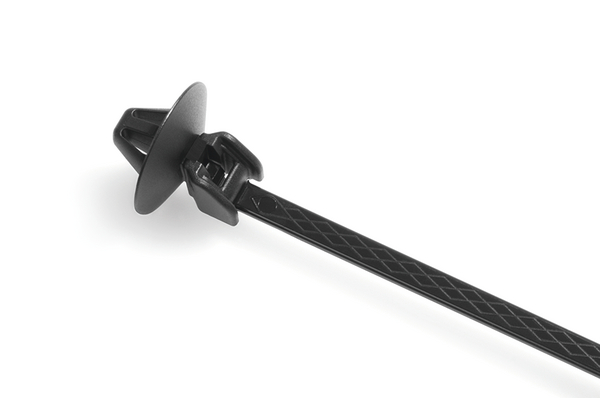

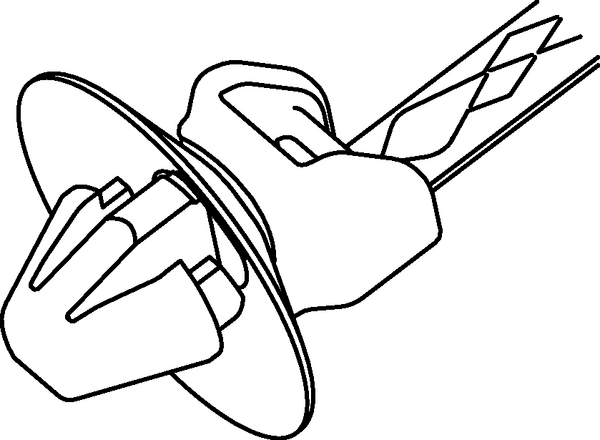

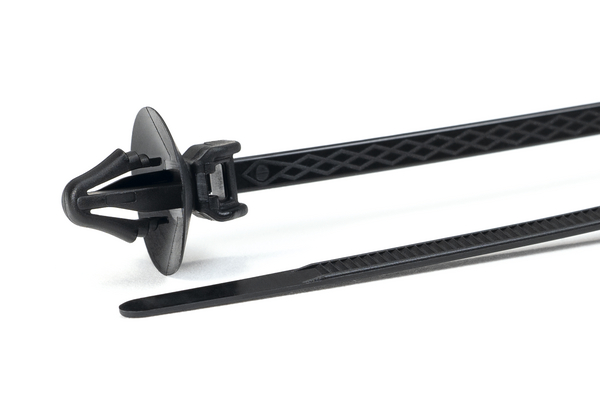

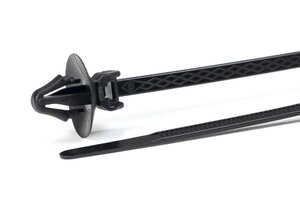

Fixing tie for hole (round), outside serrated, Ø25mm, black, 1500pcs.
Cikkszám 126-00255 | T30SOS-AS-SFT6.5-E-PA66HS-BK Részletek

  • Easy to install without the need for a tool
  • Arrowhead simply locks into place
  • Disc adjusts tie for pressures from various directions and minimises ingress of dust and dirt
  • Cable tie head always situated in a defined position
  • KSFT-types with specially rounded arrowhead minimise the assembly height
mutasson többet
Csomag mérete

Kérje egyedi ajánlatát most

Application With a diverse range of fixing possibilities these ties are ideal for use in many different industries, including automotive, aerospace, white goods manufacture and panel building. This fastening solution is used to secure cable harnesses. We offer a variety of panel thicknesses and hole sizes to suit all kinds of application.
Application Tool MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7, EVO7SP, EVO7i
Colour Black (BK)
Fixation Method arrowhead
Identification Plate Position none
Material Polyamide 6.6, heat stabilised (PA66HS)
Pack Cont. 1500pcs.

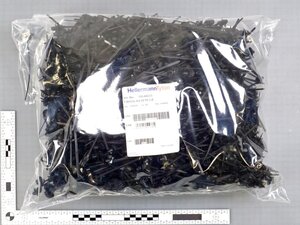

Package Content packed in bag
PART DESCRIPTION T30SOS-AS-SFT6.5-E-PA66HS-BK
Product Family for round holes
Product Group 1-piece fixing ties with arrowhead, with disc
Releasable Closure (Yes/No) No
Short Description 1-piece fixing tie with arrowhead, with disc 126,4x3.45 mm black
Tie Closure plastic pawl
Variant Outside Serrated with AntiSlip Engraving
Bundle Diameter max (metric) 25mm
Bundle ∅ 25mm
Disc ∅ 16.0mm
for Hole ∅ (FH) 6.5 - 7.0 mm
for Panel Thickness min - max 0.8 - 1.5 mm
Length (L) 126.4mm
Min.Tensile Strength 200N
Weight/Unit 0.000893kg
Width (W) 3.45mm
ELV compliant (Article 4 - 2) YES
Hazardous Goods No
Specifications
Country of Origin DE
Customs Number 39269097
GTIN-13 / EAN 4031026519784
Packaging 1 - Height (m) 0.16m
Packaging 1 - Length (m) 0.53m
Packaging 1 - Qty 1500
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.03774
Packaging 1 - Weight (kg) 1.3835kg
Packaging 1 - Width (m) 0.445m
Packaging 3 - Height (m) 0.368m
Packaging 3 - Length (m) 0.584m
Packaging 3 - Qty 6000
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.083
Packaging 3 - Weight (kg) 6.382864kg
Packaging 3 - Width (m) 0.386m
Packaging 4 - Height (m) 1.249m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 72000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.199
Packaging 4 - Weight (kg) 97.584kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
