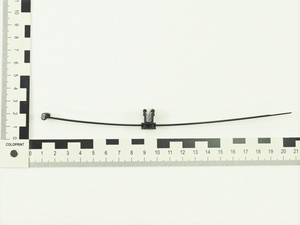

Fixing tie for edge, outside serrated, Ø4.0-45.0mm, black, 100pcs.
Cikkszám 156-00948 | T50ROSEC4A-PA66W-BK Részletek

  • Pre-assembled 2-piece fixing tie with EdgeClip
  • Cable tie head can be moved after bundling
  • EC9, EC10, EC21 and EC22 are for minimum bundle diameters of 1 mm
  • For edges of 1 - 3 mm
Csomag mérete

Kérje egyedi ajánlatát most

Application These cable ties and EdgeClip assemblies are ideal for use where holes are not acceptable or where due to temperature problems adhesives will fail. These assemblies are widely used for fixing and bundling cables, pipes and hoses within the automotive industry, harness making, panel building and electrical industry.
Application Tool MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7, EVO7SP, EVO7i, EVO9, EVO9SP
Colour Black (BK)
Description Available with either 'inside' or 'outside' serrated ties these two piece assemblies simply push onto an edge with thicknesses from 1.0 to 3.0mm. The high 'pull off' forces are due to the integrated metal clamp. Different Edge Clip variations are available. One version allows for cables to run parallel to the edge, whilst another allows for installation at 90 degrees to the edge. The clip is simply pushed on by hand and held firmly in place by the integrated metal clamp. No fixing hole is necessary. Combined with the outside serrated (OS) ties, specially designed to protect cables from chafing and wear, the Edge Clip family provides an excellent fastening solution.
Fixation Method EdgeClip, top, assembled, 2 piece
Identification Plate Position none
Material Polyamide 6.6, UV-resistant (PA66W)

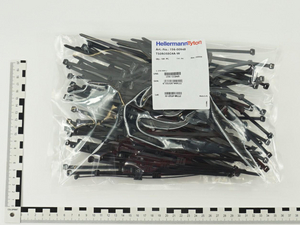

Pack Cont. 100pcs.
Package Content packed in bag
PART DESCRIPTION T50ROSEC4A-PA66W-BK
Product Family EdgeClip-Series, 1.0 - 3.0 mm, top fixing
Product Group 2-piece fixing ties for edges
Releasable Closure (Yes/No) No
Short Description 2-piece fixing tie with edge clip 200x4.6 mm, UV-resistant, black
Variant Outside Serrated
Bundle Diameter max (metric) 45.0mm
Bundle ∅ 4.0-45.0mm
Bundle ∅ min. 4.0mm
for Panel Thickness min - max 1 - 3 mm
Height (H) 1.3mm
Height (H2) 16.0mm
Length (L) 200mm
Length (L2) 14.0mm
Min.Tensile Strength 225N
Thickness (T) 1.2mm
Weight/Unit 0.00232kg
Width (W) 4.6mm
Width (W2) 11.5mm
ELV compliant (Article 4 - 2) YES
Flammability UL 94 V2
Halogen-free Yes
Hazardous Goods No
Operating Temperature -40 °C to +85 °C
Specifications
Country of Origin PL
Customs Number 39269097
GTIN-13 / EAN 4031026449111
Packaging 1 - Height (m) 0.15m
Packaging 1 - Length (m) 0.3m
Packaging 1 - Qty 100
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.0117
Packaging 1 - Weight (kg) 0.245862kg
Packaging 1 - Width (m) 0.26m
Packaging 3 - Height (m) 0.368m
Packaging 3 - Length (m) 0.584m
Packaging 3 - Qty 3000
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.083
Packaging 3 - Weight (kg) 8.19586kg
Packaging 3 - Width (m) 0.386m
Packaging 4 - Height (m) 1.248m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 36000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.198
Packaging 4 - Weight (kg) 119.4kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
