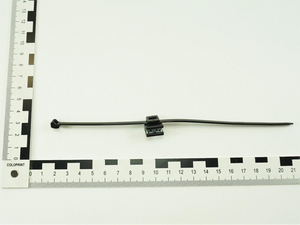

2-Piece Fixing Ties for Edges, 1.0 - 3.0 mm, Side Fixing T50ROSEC5B

EdgeClip-Family, Cikkszám: 150-40581

Tulajdonságok

  • Pre-assembled 2-piece fixing tie with EdgeClip
  • Cable tie head can be moved after bundling
  • EC9, EC10, EC21 and EC22 are for minimum bundle diameters of 1 mm
  • For edges of 1 – 3 mm

Tanúsítványok

Felhasználás

These cable ties and EdgeClip assemblies are ideal for use where holes are not acceptable or where due to temperature problems adhesives will fail. These assemblies are widely used for fixing and bundling cables, pipes and hoses within the automotive industry, harness making, panel buidling and electrical industry.

EdgeClip-Family az alábbi iparágban használhatóak

Anti rotation (Yes / No) YES
Application Tool MK3PNSP2, MK3SP, MK6, MK7HT, MK7P, MK20, MK21, EVO7, EVO7SP, EVO9
Colour Black (BK)
Description Available with either 'inside' or 'outside' serrated ties these two piece assemblies simply push onto an edge with thicknesses from 1.0 to 3.0mm. The high 'pull off' forces are due to the integrated metal clamp. Different Edge Clip variations are available. One version allows for cables to run parallel to the edge, whilst another allows for installation at 90 degrees to the edge. The clip is simply pushed on by hand and held firmly in place by the integrated metal clamp. No fixing hole is necessary. Combined with the outside serrated (OS) ties, specially designed to protect cables from chafing and wear, the Edge Clip family provides an excellent fastening solution.
Description Short (BMEcat) (max. 150 characters) 2-Piece Fixing Tie 200x4.6 for Edges 1-3 mm HS-black
Fixation Method EdgeClip, sideway, assembled, 2 piece
GLOBAL PART DESCRIPTION T50ROSEC5B-PA66HS/PA66HIRHS-BK
Identification Plate Position none
No. of sides for tie attachment 4

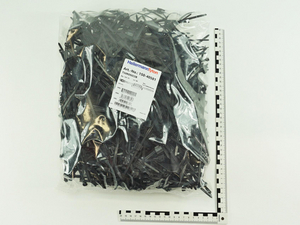

Pack Cont. 500pcs.
Package Quantity per Bag
Product Family EdgeClip-Family
Product Group 2-Piece Fixing Ties for Edges, 1.0 - 3.0 mm, Side Fixing
Releasable Closure (Yes/No) No
Type T50ROSEC5B.HB6P
Variant Outside Serrated
Bundle ∅ max. 45.0mm
Bundle ∅ min. 4.0mm
for Panel Thickness min - max 1 - 3 mm
for Panel Thickness min - max 0 - 0.1 "
Height (H) 1.3mm
Height (H2) 15.5mm
Length (L) 200mm
Length (L2) 14.0mm
Min.Tensile Strength 225N
Thickness (T) 1.3mm
Width (W) 4.6mm
Width (W2) 10.0mm
Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Foot Part Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Hazardous good No
Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Operating Temperature - °C -40 °C to +105 °C, (+105 °C for 500 h)
Operating Temperature Foot Part (Metric) -40 °C to +105 °C, (+105 °C for 500 h)
Specifications
EAN / GTIN 4031026207803
Packaging 1 - Height (m) 0.09m
Packaging 1 - Length (m) 0.6m
Packaging 1 - Qty 500
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.01458
Packaging 1 - Weight (kg) 1.432kg
Packaging 1 - Width (m) 0.27m
Packaging 3 - Height (m) 0.368m
Packaging 3 - Length (m) 0.584m
Packaging 3 - Qty 4000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.083
Packaging 3 - Weight (kg) 12.276kg
Packaging 3 - Width (m) 0.386m
Packaging 4 - Height (m) 1.249m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 48000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.199
Packaging 4 - Weight (kg) 168.312kg
Packaging 4 - Width (m) 0.8m
Weight 1.43kg
ETIM 5.0 EC000046
ETIM 6.0 EC000046
UNSPSC Key 39121703
