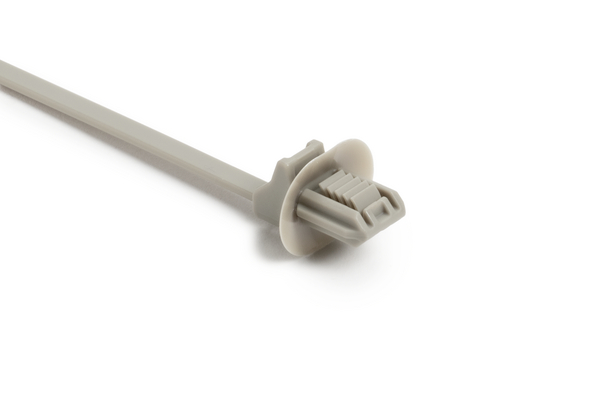

Fixing tie for hole (oval), outside serrated, ⌀1.5-35.0mm, grey, 500pcs.
Cikkszám 126-00229
| T50SOS3DOP65X130-E-PA46-GY
|
Copied
- Cable tie head always situated in defined position
- Easy to assemble without the need for a tool
- Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
- Fir tree foot part can be used for a variety of panel thicknesses
- Suitable for use within threaded holes
- Versions for oval holes feature anti-twist protection
Kérje egyedi ajánlatát most
Ajánlatkérés
More products in this product group:
| Application | Primarily designed for fixing cable harnesses in the automotive industry their simplicity, and ease of use, has seen these parts used in everything from aircraft, to switch-gear, to washing machines. |
| Colour | Grey (GY) |
| Fixation Method | Fir tree for round holes |
| Identification Plate Position | none |
| Key product features | products for automatic tools |
| Material | Polyamide 4.6 (PA46) |
| Min.Tensile Strength | 180N |
| PART DESCRIPTION | T50SOS3DOP65X130-E-PA46-GY |
| Package Content | 500pcs. |
| Package Content packed in | bag |
| Product Family | for oval holes |
| Product Group | 1-Piece Fixing Ties with Fir Tree, with Disc, for Oval Holes |
| Releasable Closure (Yes/No) | No |
| Tie Closure | plastic pawl |
| Type | T50SOS3DOP65X130-E |
| UV-Stabilised | No |
| Variant | Outside Serrated |
| Weight/Unit | 0.0021kg |
|
|
| Bundle ⌀ | 1.5-35.0mm |
| Bundle ⌀ max. | 35.0mm |
| Bundle ⌀ min. | 1.5mm |
| Disc ⌀ | 16.0 x 21.0mm |
| Fixing Hole Shape | Oval |
| Height (H) | 11.3mm |
| Length (L) | 165.0mm |
| Panel Thickness | 0.7 - 5.0mm |
| Thickness (T) | 1.3mm |
| Width (W) | 4.6mm |
| for Hole ⌀ (FH) | 6.5 x 13.0 mm |
| for Panel Thickness min - max | 0.7 - 5 mm |
| for Panel Thickness min - max | 0 - 0.2 " |
Letöltés
|
|
|
| Country of Origin | CN |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026509235 |
| Packaging 1 - Height (m) | 0.12m |
| Packaging 1 - Length (m) | 0.4m |
| Packaging 1 - Qty | 500 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.0144m³ |
| Packaging 1 - Weight (kg) | 1.050001kg |
| Packaging 1 - Width (m) | 0.3m |
| Packaging 3 - Height (m) | 0.22m |
| Packaging 3 - Length (m) | 0.57m |
| Packaging 3 - Qty | 2500 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0489m³ |
| Packaging 3 - Weight (kg) | 5.955005kg |
| Packaging 3 - Width (m) | 0.39m |
| Packaging 4 - Height (m) | 1.244m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 50000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.194m³ |
| Packaging 4 - Weight (kg) | 140.1kg |
| Packaging 4 - Width (m) | 0.8m |
