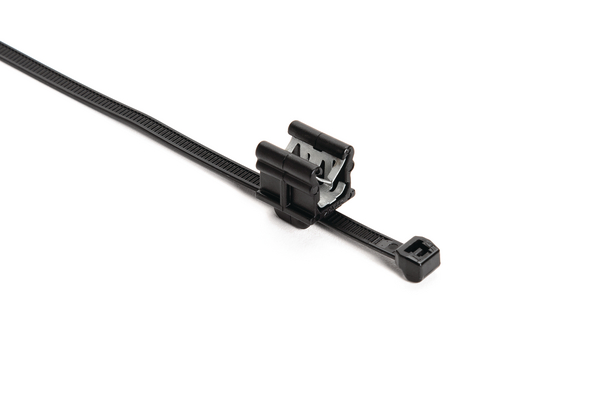

Fixing tie for edge, outside serrated, ⌀1.0-35.0mm, black, 500pcs.
Cikkszám 156-04601
| T50SOSEC19-PA66HS/PA66HIRHS-BK
|
Copied
- Pre-assembled 2-piece fixing tie with EdgeClip
- Cable tie head can be moved after bundling
- For minimum bundle diameters of 1 mm
- For edges of 3 – 6 mm
Kérje egyedi ajánlatát most
Ajánlatkérés
More products in this product group:
| Application | These cable ties and EdgeClip assemblies are ideal for use where holes are not acceptable or where due to temperature problems adhesives will fail. These assemblies are widely used for fixing and bundling cables, pipes and hoses within the automotive industry, harness making, panel building and electrical industry. |
| Cable Tie | Polyamide 6.6, heat stabilised (PA66HS) |
| Colour | Black (BK) |
| Description |
Available with either 'inside' or 'outside' serrated ties these two piece assemblies simply push onto an edge with thicknesses from 3.0 to 6.0mm. The high 'pull off' forces are due to the integrated metal clamp. Different EdgeClip variations are available. One version allows for cables to run parallel to the edge, whilst another allows for installation at 90 degrees to the edge. The clip is simply pushed on by hand and held firmly in place by the integrated metal clamp. No fixing hole is necessary. Combined with the outside serrated (OS) ties, specially designed to protect cables from chafing and wear, the EdgeClip family provides an excellent fastening solution. |
| Fixation Method | Edge Clip |
| Foot Part | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| Identification Plate Position | none |
| Key product features | for narrow bundling |
| Material | Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| Min.Tensile Strength | 225N |
| PART DESCRIPTION | T50SOSEC19-PA66HS/PA66HIRHS-BK |
| Package Content | 500pcs. |
| Package Content packed in | pack |
| Product Family | EdgeClip-Series, 3.0 - 6.0 mm, top fixing |
| Product Group | 2-Piece Fixing Ties for Edges, 3,0 - 6,0 mm |
| Short Description | 2-Piece fixing tie 150x4.6 mm, for edges 3-6 mm, PA66HS/PA66HIRHS, black |
| Type | T50SOSEC19 |
| UV-Stabilised | No |
| Variant | Outside Serrated |
| Weight/Unit | 0.003068kg |
Letöltés
| CE Certification | No |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 HB |
| Hazardous Goods | No |
| Nato number | 5975-12-409-2640 |
| Operating Temperature | -40 °C to +105 °C |
| Operating Temperature Foot Part (Metric) | -40 °C to +105 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
|
|
|
| Country of Origin | PL |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026230061 |
| Packaging 1 - Height (m) | 0.13m |
| Packaging 1 - Length (m) | 0.23m |
| Packaging 1 - Qty | 500 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.009269m³ |
| Packaging 1 - Weight (kg) | 1.563135kg |
| Packaging 1 - Width (m) | 0.31m |
| Packaging 3 - Height (m) | 0.368m |
| Packaging 3 - Length (m) | 0.584m |
| Packaging 3 - Qty | 4000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.083m³ |
| Packaging 3 - Weight (kg) | 13.32508kg |
| Packaging 3 - Width (m) | 0.386m |
| Packaging 4 - Height (m) | 1.248m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 48000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.198m³ |
| Packaging 4 - Weight (kg) | 180.888kg |
| Packaging 4 - Width (m) | 0.8m |
