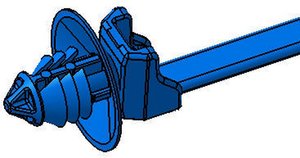

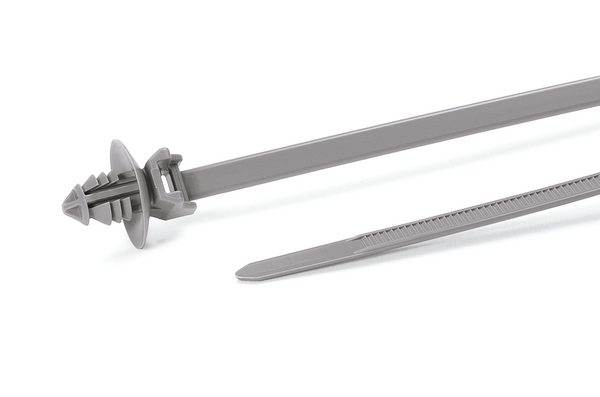

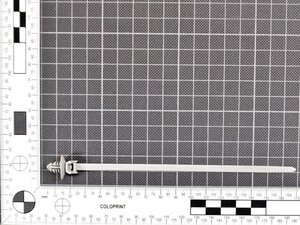

Fixing tie for hole (round), outside serrated, Ø1.0-35.0mm, grey, 1000pcs.
Cikkszám 157-00059 | T50SOSFT6E1-PA46-GY Részletek

  • Cable tie head always situated in defined position
  • Easy to assemble without the need for a tool
  • Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
  • Fir tree foot part can be used for a variety of panel thicknesses
  • Suitable for use within threaded holes
mutasson többet

Kérje egyedi ajánlatát most

Application Primarily designed for fixing cable harnesses in the automotive industry, their simplicity and ease of use has resulted in these parts being used in other industries, for example aviation, switch gear manufacturer, white goods manufacturer.
Application Tool MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7SP, EVO7i
Colour Grey (GY)
Fixation Method Fir tree for round holes
Identification Plate Position none
Material Polyamide 4.6 (PA46)
Pack Cont. 1000pcs.

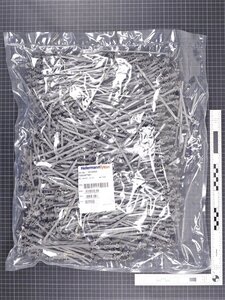

Package Content packed in bag
PART DESCRIPTION T50SOSFT6E1-PA46-GY
Product Family Fir tree parts FT6
Product Group 1-piece fixing ties with fir tree, with disc, for round holes
Releasable Closure (Yes/No) No
Short Description 1-piece fixing ties with fir tree, with disc, for round holes 161.4x4.7 mm, pa46, grey
Tie Closure plastic pawl
Variant Outside Serrated
Bundle Diameter max (metric) 35.0mm
Bundle ∅ 1.0-35.0mm
Bundle ∅ min. 1.0mm
Disc ∅ 16.0mm
for Hole ∅ (FH) 6.3 - 7.0 mm
for Panel Thickness min - max 0.7 - 3 mm
for Panel Thickness min - max 0 - 0.1 "
Length (L) 161.4mm
Min.Tensile Strength 150N
Thickness (T) 1.35mm
Weight/Unit 0.00156kg
Width (W) 4.7mm
ELV compliant (Article 4 - 2) YES
Flammability UL 94 V2
Hazardous Goods No
Operating Temperature -40 °C to +150 °C
Specifications
Country of Origin DE
Customs Number 39269097
GTIN-13 / EAN 4031026318325
Packaging 1 - Height (m) 0.065m
Packaging 1 - Length (m) 0.47m
Packaging 1 - Qty 1000
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.0113
Packaging 1 - Weight (kg) 1.603597kg
Packaging 1 - Width (m) 0.37m
Packaging 3 - Height (m) 0.368m
Packaging 3 - Length (m) 0.584m
Packaging 3 - Qty 5000
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.083
Packaging 3 - Weight (kg) 8.837985kg
Packaging 3 - Width (m) 0.386m
Packaging 4 - Height (m) 1.248m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 60000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.198
Packaging 4 - Weight (kg) 127.08kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121717
