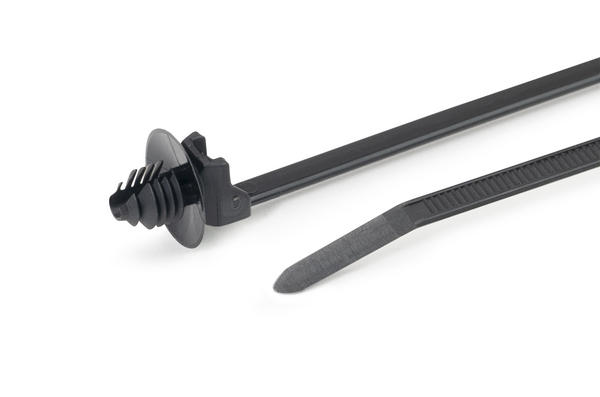

1-Piece Fixing Ties with Fir Tree, with Disc, for Round Holes T50SOSFT6E

Fir Tree Parts FT6, Cikkszám: 155-05800

Tulajdonságok

  • Cable tie head always situated in defined position
  • Easy to assemble without the need for a tool
  • Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
  • Fir tree foot part can be used for a variety of panel thicknesses
  • Suitable for use within threaded holes

Tanúsítványok

Felhasználás

Primarily designed for fixing cable harnesses in the automotive industry, their simplicity and ease of use has resulted in these parts being used in other industries, for example aviation, switch gear and white goods manufacturing.

Fir Tree Parts FT6 az alábbi iparágban használhatóak

Anti rotation (Yes / No) NO
Application Tool MK3PNSP2, MK3SP, MK6, MK7HT, MK7P, MK20, MK21, EVO7, EVO9
Colour Black (BK)
Description Short (BMEcat) (max. 150 characters) 1-Piece Fixing Tie with Fir Tree and Disc Fixing Tie 160x4.6 black
Fixation Method Fir Tree
GLOBAL PART DESCRIPTION T50SOSFT6E-PA66HIRHS-BK
Identification Plate Position none

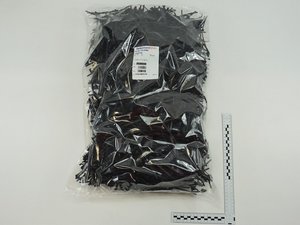

Pack Cont. 1500pcs.
Package Quantity per Bag
Product Family Fir Tree Parts FT6
Product Group 1-Piece Fixing Ties with Fir Tree, with Disc, for Round Holes
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Type T50SOSFT6E.HB6P
Variant Outside Serrated
Bundle ∅ max. 32.0mm
Bundle ∅ min. 1.6mm
Disc ∅ 16.0mm
for Hole ∅ (FH) 6.5 - 7.0 mm
for Panel Thickness min - max 0.8 - 3 mm
for Panel Thickness min - max 0 - 0.1 "

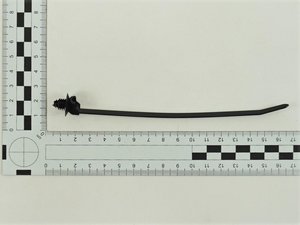

Length (L) 160mm
Length of Fir Tree 8.4mm
Min.Tensile Strength 150N
Panel Thickness max. 0.75 – 3.0mm
Thickness (T) 1.35mm
Width (W) 4.7mm
Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
ELV compliant Dir. Art. 4 (2) YES
Hazardous good No
Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Operating Temperature - °C -40 °C to +105 °C, (+145 °C, 500 h)
Specifications
EAN / GTIN 4031026215983
Packaging 1 - Height (m) 0.3m
Packaging 1 - Length (m) 0.625m
Packaging 1 - Qty 1500
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.0825
Packaging 1 - Weight (kg) 2.079672kg
Packaging 1 - Width (m) 0.44m
Packaging 3 - Height (m) 0.538m
Packaging 3 - Length (m) 0.584m
Packaging 3 - Qty 7500
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.1213
Packaging 3 - Weight (kg) 11.49836kg
Packaging 3 - Width (m) 0.386m
Packaging 4 - Height (m) 1.221m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 60000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.172
Packaging 4 - Weight (kg) 113.0kg
Packaging 4 - Width (m) 0.8m
Weight 1.995kg
ETIM 5.0 EC000046
ETIM 6.0 EC000046
UNSPSC Key 39121717
