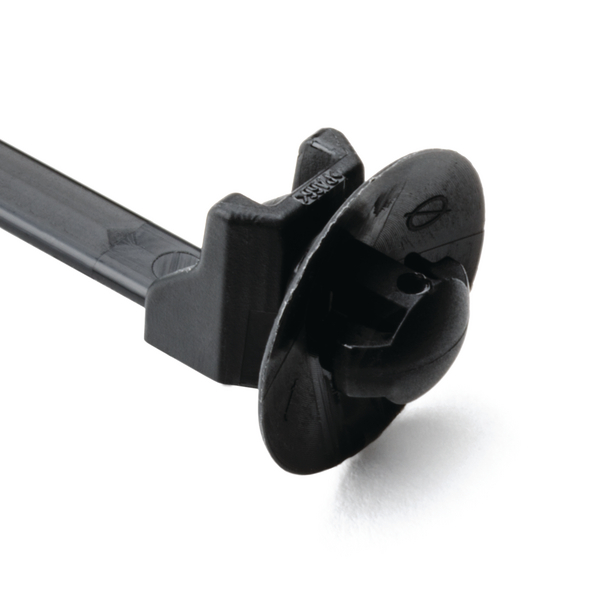

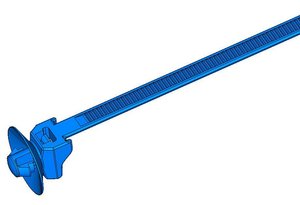

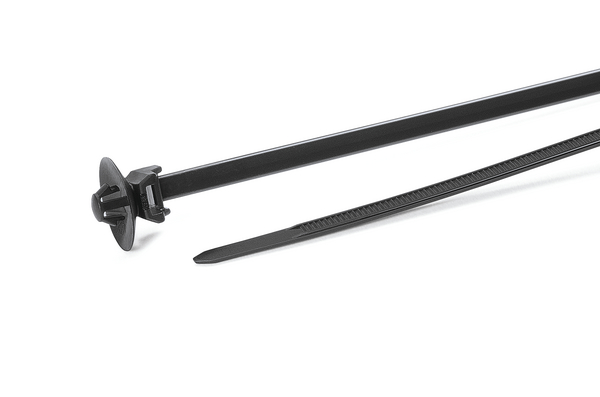

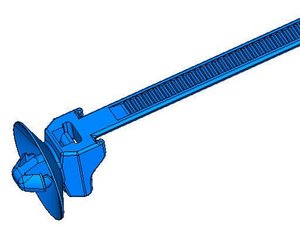

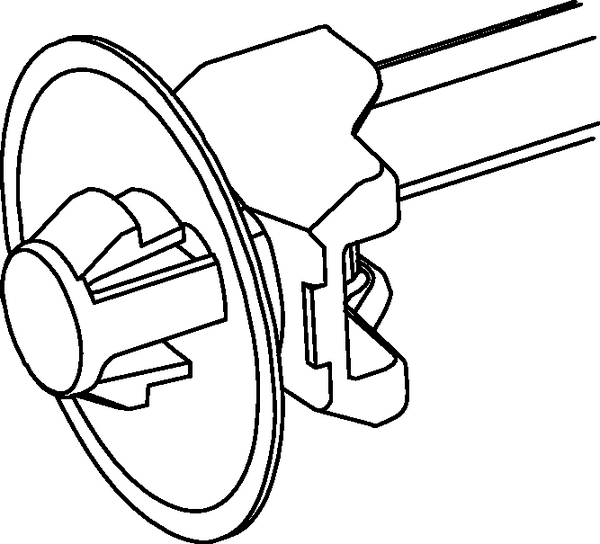

1-Piece Fixing Ties with Arrowhead, with Disc T50SOSKSFT5.4E

1-Piece Fixing Ties with Arrowhead, with Disc, for Round Holes, Cikkszám: 126-00075

Tulajdonságok

  • Easy to install without the need for a tool
  • Arrowhead simply locks into place
  • Disc adjusts tie for pressures from various directions and minimises ingress of dust, dirt and water
  • Cable tie head always situated in a defined position
  • KSFT-types with specially rounded arrowhead minimise the assembly height

Tanúsítványok

Felhasználás

With a diverse range of fixing possibilities these ties are ideal for use in many different industries, including automotive, aerospace, white goods manufacture and panel building.

1-Piece Fixing Ties with Arrowhead, with Disc, for Round Holes az alábbi iparágban használhatóak

  • Electronics Industry Electronics Industry
  • Automotive Industry Automotive Industry
Application Tool MK3PNSP2, MK3SP, MK6, MK7HT, MK7P, MK20, MK21, EVO7, EVO9
Colour Black (BK)
Description Short (BMEcat) (max. 150 characters) Fixing tie 156x4.6 mm, arrowhead, heat stabilised, black
Fixation Method Arrowhead (Small Mount)
GLOBAL PART DESCRIPTION T50SOSKSFT5.4E-PA66HS-BK
Identification Plate Position none
Pack Cont. 500pcs.
Package Quantity per Bag
Product Family 1-Piece Fixing Ties with Arrowhead, with Disc, for Round Holes
Product Group 1-Piece Fixing Ties with Arrowhead, with Disc
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Type 126-00075
Variant Outside Serrated
Bundle ∅ max. 35.0mm
Bundle ∅ min. 1.0mm
Disc ∅ 16.0mm
for Hole ∅ (FH) 5.2 - 5.6 mm
for Panel Thickness min - max 0.7 - 1.3 mm
for Panel Thickness min - max 0 - 0.1 "
Length (L) 156.0mm
Min.Tensile Strength 225.0N
Panel Thickness max. 0.7 – 1.3mm
Width (W) 4.6mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Hazardous good No
Material Polyamide 6.6, heat stabilised (PA66HS)
Operating Temperature - °C -40 °C to +105 °C
Specifications
EAN / GTIN 4031026293424
Packaging 1 - Height (m) 0.075m
Packaging 1 - Length (m) 0.395m
Packaging 1 - Qty 500
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.01333
Packaging 1 - Weight (kg) 0.6825kg
Packaging 1 - Width (m) 0.45m
Packaging 3 - Height (m) 0.368m
Packaging 3 - Length (m) 0.584m
Packaging 3 - Qty 6000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.083
Packaging 3 - Weight (kg) 9.01kg
Packaging 3 - Width (m) 0.386m
Packaging 4 - Height (m) 1.248m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 72000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.198
Packaging 4 - Weight (kg) 129.192kg
Packaging 4 - Width (m) 0.8m
Weight 0.65kg
ETIM 5.0 EC000046
ETIM 6.0 EC000046
UNSPSC Key 39121703
