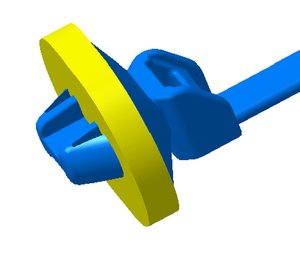

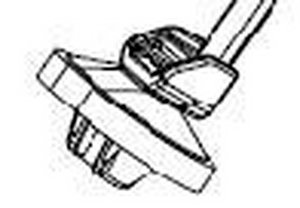

1-Piece Fixing Ties with Arrowhead, with Disc, sealed, for Oval Holes T60SOSSFT70x120-E-MD

1-Piece Fixing Ties with Arrowhead, with Disc, for oval Holes, Sealed, Cikkszám: 126-00079

Tulajdonságok

  • Easy to assemble without the need for a tool
  • Arrowhead simply locks into place
  • Disc adjusts the tie for pressures from various directions
  • Cable tie head always situated in defined position
  • Cellular rubber seal minimises access of dust and dirt
  • SFT versions for oval holes feature anti-twist protection

Tanúsítványok

Felhasználás

With a diverse range of fixing possibilities (from 0.6mm to 2.0mm panel thickness) this range of fixing ties is ideal for use in many different industries, including automotive, aerospace and panel building.

1-Piece Fixing Ties with Arrowhead, with Disc, for oval Holes, Sealed az alábbi iparágban használhatóak

  • Electronics Industry Electronics Industry
  • Automotive Industry Automotive Industry
Application Tool MK3PNSP2, MK3SP, MK6, MK7HT, MK7P, MK9P, MK20, MK21, EVO7, EVO9, EVO9HT
Colour Black (BK)
Description Short (BMEcat) (max. 150 characters) 1-Piece fixing tie 157.5x5.5 mm, with arrowhead, heat stabilised, black
Fixation Method Arrowhead for oval holes
GLOBAL PART DESCRIPTION T60SOSSFT70x120-E-MD-PA66HS-BK
Identification Plate Position none
Pack Cont. 500pcs.
Package Quantity per Bag
Product Family 1-Piece Fixing Ties with Arrowhead, with Disc, for oval Holes, Sealed
Product Group 1-Piece Fixing Ties with Arrowhead, with Disc, sealed, for Oval Holes
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Type T60SOSSFT70x120-E-MD-PA66HS-M1
Variant Outside Serrated
Bundle ∅ max. 30.0mm
Bundle ∅ min. 1.6mm
Disc ∅ 16.0 x 22.0mm
for Hole ∅ (FH) 7.0 x 12.0 mm
for Panel Thickness min - max 0.6 - 2 mm
for Panel Thickness min - max 0 - 0.1 "
Length (L) 157.7mm
Min.Tensile Strength 300N
Panel Thickness max. 0.6 – 2.0mm
Thickness (T) 1.35mm
Width (W) 5.5mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Hazardous good No
Material Polyamide 6.6, heat stabilised (PA66HS)
Operating Temperature - °C -40 °C to +105 °C, (+105 °C for 500 h)
Specifications
EAN / GTIN 4031026301426
Packaging 1 - Height (m) 0.2m
Packaging 1 - Length (m) 0.395m
Packaging 1 - Qty 500
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.03555
Packaging 1 - Weight (kg) 1.0795kg
Packaging 1 - Width (m) 0.45m
Packaging 3 - Height (m) 0.368m
Packaging 3 - Length (m) 0.584m
Packaging 3 - Qty 3000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.083
Packaging 3 - Weight (kg) 7.297kg
Packaging 3 - Width (m) 0.386m
Packaging 4 - Height (m) 1.249m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 36000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.199
Packaging 4 - Weight (kg) 108.6kg
Packaging 4 - Width (m) 0.8m
Weight 1.047kg
ETIM 6.0 EC000046
