Bundling clip for hole (oval), L=40.0mm, black, 5000pcs.
Cikkszám 151-03395 | BC40FT62X122S-PA66HIRHS-BK |

Copied

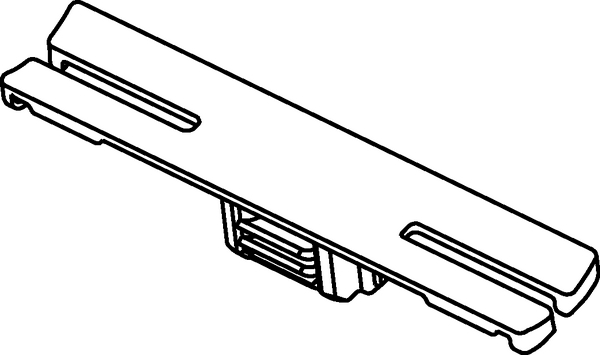

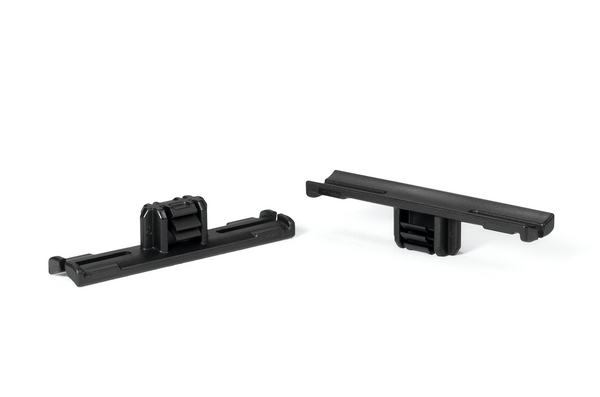

Bundling Clip with FirTree for oval holes (6.2 x 12.2 mm).

    • Effortless, tool-free installation – can be mounted easily by hand without the need for tools
    • Flexible attachment options – compatible with both cable ties and adhesive tape
    • Oval base geometry – ensures defined cable routing and provides reliable anti-twist protection for secure positioning
    Felvétel a figyelőlistára

    Kérje egyedi ajánlatát most

     Ajánlatkérés
    Downloads
    Application These bundling clips are mainly used in the automotive industry, particularly for the assembly of cable harnesses. They offer a simple and user-friendly method for fastening cables, hoses and pipes.
    Colour Black (BK)
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION BC40FT62X122S-PA66HIRHS-BK
    Package Content 5000pcs.
    Package Content packed in bag
    Product Family for oval holes
    Product Group Bundling clips with fir tree
    Type BC40FT62X122S
    Weight/Unit 0.000694kg
    Bundling Bar Length 40.0mm
    Fixing Hole Shape Oval
    Height (H) 7.5mm
    Height (H2) 6.3mm
    Panel Thickness max. 0.60 - 2.30mm
    Width (W) 8.0mm
    for Hole ⌀ (FH) 6.2 x 12.2 mm
    for Panel Thickness min - max 0.6 - 2.3 mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin PL
    Customs Number 39269097
    GTIN-13 / EAN 4031026658865
    Packaging 1 - Height (m) 0.05m
    Packaging 1 - Length (m) 0.47m
    Packaging 1 - Qty 5000
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.0128075m³
    Packaging 1 - Weight (kg) 3.513597kg
    Packaging 1 - Width (m) 0.545m
    Packaging 3 - Height (m) 0.204m
    Packaging 3 - Length (m) 0.591m
    Packaging 3 - Qty 15000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.048m³
    Packaging 3 - Weight (kg) 11.502791kg
    Packaging 3 - Width (m) 0.398m
    Packaging 4 - Height (m) 1.204m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 300000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.156m³
    Packaging 4 - Weight (kg) 251.08kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
