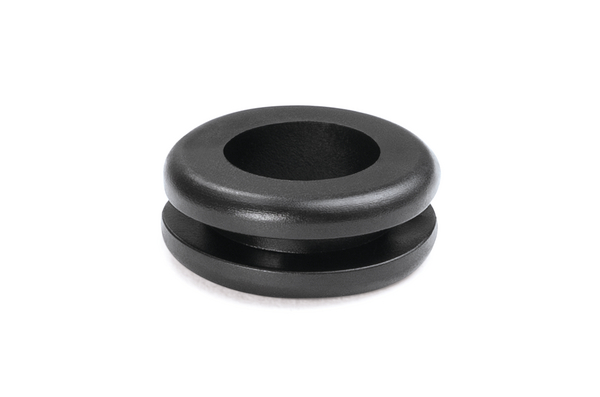

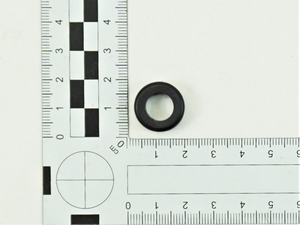

Edge Protection Grommets HV1203

HV1203, Cikkszám: 633-02030

Tulajdonságok

  • Protects cables from sharp edges
  • Provides additional strain relief
  • Flexible and easy to apply
  • High resistance to chemicals and environmental influences

Tanúsítványok

Felhasználás

Edge protection grommets are used wherever cable and wires are routed through outlets and apertures. HellermannTyton grommets offer excellent mechanical protection.

HV1203 az alábbi iparágban használhatóak

  • Automotive Industry Automotive Industry
  • Electronics Industry Electronics Industry
Cable ∅ max 11.0mm
Cable ∅ min 10.0mm
Colour Black (BK)
Description Short (BMEcat) (max. 150 characters) Edge protection grommets black

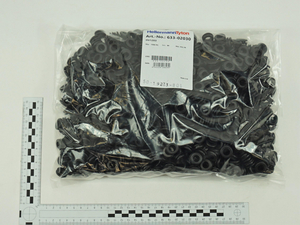

Pack Cont. 1000pcs.
Package Quantity per pcs.
PART DESCRIPTION HV1203-PVC-FR-BK
Product Family HV1203
Product Group Edge Protection Grommets
Variant Closed
Bundle ∅ max. 17.5mm
Diameter (D) 10.0mm
for Hole ∅ (FH) 12.0 mm
Height (H) 6.8mm
Height (H2) 2.0mm
Outside Ø (OD) 17.5mm
Shore Hardness A 55±5
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V0
Hazardous good No
Material Polyvinylchloride, flame retardant (PVC-FR)
Operating Temperature - °C -30 °C to +60 °C
Specifications
Waterproof No
EAN / GTIN 4031026186269
Packaging 1 - Height (m) 0.035m
Packaging 1 - Length (m) 0.35m
Packaging 1 - Qty 1000
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.0049
Packaging 1 - Weight (kg) 1.0kg
Packaging 1 - Width (m) 0.4m
Weight 1.0kg
ETIM 6.0 EC000879
ETIM 7.0 Key EC000879
