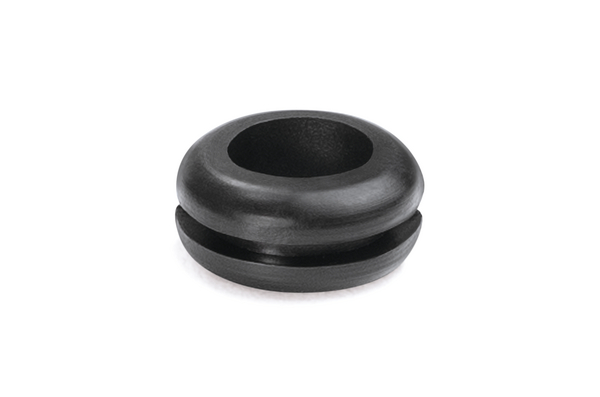

Cable grommet, Ø8.0 mm, black, 2000pcs.
Cikkszám 633-02150 | HV1215-PVC-FR-BK Részletek

  • Protects cables from sharp edges
  • Provides additional strain relief
  • Flexible and easy to apply
  • High resistance to chemicals and environmental influences

Kérje egyedi ajánlatát most

Application Edge protection grommets are used wherever cable and wires are routed through apertures. HellermannTyton grommets offer excellent mechanical protection.
Cable ∅ max 7.0mm
Cable ∅ min 6.0mm
Colour Black (BK)
Material Polyvinylchloride, flame retardant (PVC-FR)

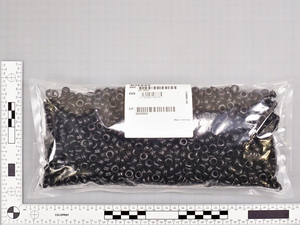

Pack Cont. 2000pcs.
Package Content packed in pcs.
PART DESCRIPTION HV1215-PVC-FR-BK
Product Family Edge protection grommets
Product Group For apertures

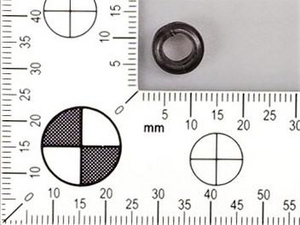

Short Description Edge protection grommets black, outside diameter: 10.0mm, inside diameter: 6.0mm, height: 5.0mm
Variant Round
Bundle Diameter max (metric) 10.0mm
Bundle ∅ 10.0mm
Diameter (D) 6.0mm
for Hole ∅ (FH) 8.0 mm
Height (H) 5.0mm
Height (H2) 1.0mm
Outside Ø (OD) 10.0mm
Shore Hardness A 55±5
Weight/Unit 0.000218kg
ELV compliant (Article 4 - 2) YES
Flammability UL 94 V0
Hazardous Goods No
Nato number 5325-12-138-3707
Operating Temperature -30 °C to +60 °C
Specifications
Country of Origin DE
Customs Number 39269097
GTIN-13 / EAN 4031026186375
Packaging 1 - Height (m) 0.04m
Packaging 1 - Length (m) 0.27m
Packaging 1 - Qty 2000
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.00346
Packaging 1 - Weight (kg) 0.451kg
Packaging 1 - Width (m) 0.32m
ETIM 7.0 Key EC000879
ETIM 8.0 Key EC000879
ETIM 9.0 Key EC000879
UNSPSC Key 39131603
