Cable grommet, ⌀9.0 mm, black, 1000pcs.
Cikkszám 632-01030 | HV2103-PVC-FR-BK

Copied
  • Routes cables free of kinks and breakage
    Provides strain relief
    Flexible and easy to apply
    High resistance to chemicals und environmental influences

Kérje egyedi ajánlatát most

Application Bend protection grommets are typically used to protect cables and wires at the apertures in casings.
Cable ⌀ max 5.5mm
Cable ⌀ min 4.5mm
Colour Black (BK)
Material Polyvinylchloride, flame retardant (PVC-FR)
PART DESCRIPTION HV2103-PVC-FR-BK
Package Content 1000pcs.
Package Content packed in pcs.
Product Family Bend protection grommets
Product Group For strain relief
Shore Hardness A 55±5
Short Description Bend protection grommets black
Type HV2103
Variant Open
Weight/Unit 0.001482kg

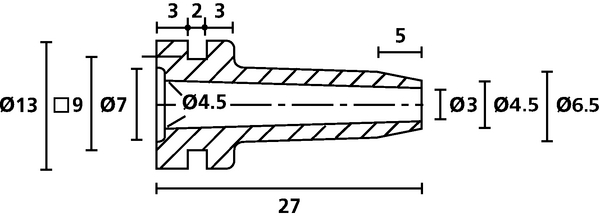

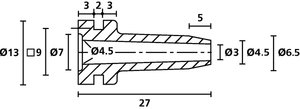

⌀ (D2) 3.0mm
Diameter (D) 4.5mm
Length (L) 27mm
Outside ⌀ (OD) 13.0mm
Outside ⌀ (OD2) 6.5mm
for Hole ⌀ (FH) 9.0 mm
ELV compliant (Article 4 - 2) YES
Flammability UL 94 V0
Hazardous Goods No
Nato number 5975-12-170-3471
Operating Temperature -30 °C to +60 °C
ROHS compliant Yes
Specifications
Country of Origin DE
Customs Number 39269097
GTIN-13 / EAN 4031026186047
Packaging 1 - Height (m) 0.08m
Packaging 1 - Length (m) 0.16m
Packaging 1 - Qty 1000
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.004608
Packaging 1 - Weight (kg) 1.505kg
Packaging 1 - Width (m) 0.36m
ETIM 7.0 Key EC000879
ETIM 8.0 Key EC000879
ETIM 9.0 Key EC000879
