19/03/2024

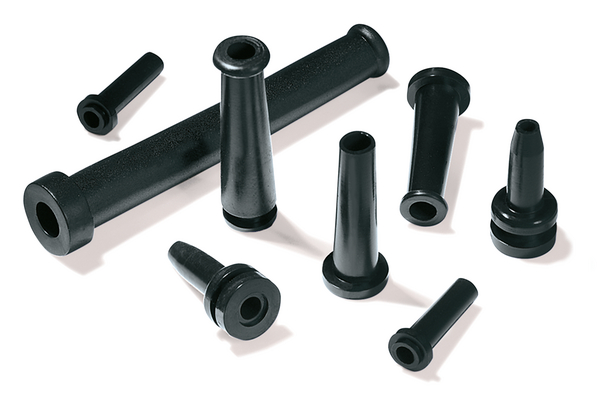

Cable grommet, Ø8.0 mm, black, 500pcs.
Cikkszám 632-02060 | HV2206-PVC-FR-BK Részletek

  • Routes cables free of kinks and breakage
  • Provides strain relief
  • Flexible and easy to apply
  • High resistance to chemicals und environmental influences

Kérje egyedi ajánlatát most

Application Bend protection grommets are typically used to protect cables and wires at the apertures in casings.
Cable ∅ max 5.6mm
Cable ∅ min 5.5mm
Colour Black (BK)
Material Polyvinylchloride, flame retardant (PVC-FR)
Pack Cont. 500pcs.
Package Content packed in pcs.
PART DESCRIPTION HV2206-PVC-FR-BK
Product Family Bend protection grommets
Product Group For strain relief

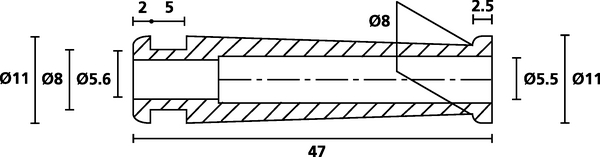

Short Description Bend protection grommets black, outside diameter: 11.0mm, inside diameter: 5.5mm
Variant Open
Diameter (D) 5.5mm
for Hole ∅ (FH) 8.0 mm
Length (L) 47.0mm
Outside Ø (OD) 11.0mm
Shore Hardness A 55±5
Weight/Unit 0.0028kg
ELV compliant (Article 4 - 2) YES
Flammability UL 94 V0
Hazardous Goods No
Nato number 5975-12-173-9133
Operating Temperature -30 °C to +60 °C
Specifications
Country of Origin DE
Customs Number 39269097
GTIN-13 / EAN 4031026186092
Packaging 1 - Height (m) 0.06m
Packaging 1 - Length (m) 0.35m
Packaging 1 - Qty 500
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.0084
Packaging 1 - Weight (kg) 1.400001kg
Packaging 1 - Width (m) 0.4m
ETIM 7.0 Key EC000879
ETIM 8.0 Key EC000879
ETIM 9.0 Key EC000879
