Fittings for spiral-reinforced PVC Conduits : PSRSC20-FMCSS-M20

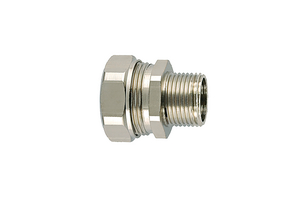

Straight Compression Fitting with rigid External Thread for Spiral-Reinforced PVC Conduits ø20mm M20Cikkszám: 166-41303

PSRSC-FMCSS Straight Compression Fitting.

Tulajdonságok

  • Multipart stainless steel (SS316) compression fitting including elastomeric seal
  • Can be used for knockouts or threaded entries as fitting rotates until tightened
  • Fits PSRSC conduits

Tanúsítványok

Felhasználás

Straight fitting, external thread, stainless steel (SS316).
Fulfils IP66, IP67, IP68 and IP69k with PSRSC conduits.

Colour Metal (ML)
Pack Cont. 1pc.
Package Quantity per bag
PART DESCRIPTION PSRSC20-FMCSS-M20-SS316/PA6-ML
Product Family PSRSC-FMCSS compression fitting
Product Group Fittings for spiral-reinforced PVC Conduits
Short Description Straight Compression Fitting with rigid External Thread for Spiral-Reinforced PVC Conduits ø20mm M20
Type of connection Thread
Variant Straight

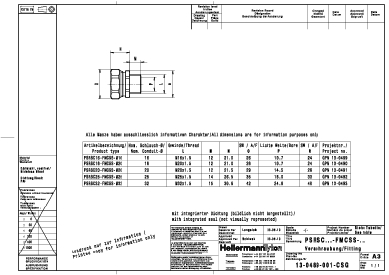

A/F Nut (A/F3) 29mm
Height (H) 29mm
Length (L) 33.5mm
Lowest inner diameter 14.5mm
Min. Bore Size (B) 14.5mm
Nominal ∅ 20mm
Nominal ∅ 0.81"
Thread Length (TL) 12.0mm
Thread Size M20
ELV compliant (Article 4 - 2) YES
Halogenfree Yes
Hazardous good No
IP-Rating IP68
Material Stainless Steel (SS316), Polyamide 6 (PA6)
Material of fitting ETIM Metal (MET)
Operating Temperature - °C -50 °C to +135 °C
Specifications
GTIN-13 / EAN 4031026411088
Packaging 1 - Height (m) 0.02m
Packaging 1 - Length (m) 0.19m
Packaging 1 - Qty 1
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.00061
Packaging 1 - Weight (kg) 0.080001kg
Packaging 1 - Width (m) 0.16m
ETIM 6.0 EC001178
ETIM 7.0 Key EC001178
