Connector clip for hole (round), EWCAP-005-11, black, 500pcs.
Številka proizvoda 155-38102 | YCC-FT6-S-PA66HIRHS-BK Podrobnosti

  • Connector easily installed by simply pushing into place
  • Connection can be released (non-destructive)
  • One fir tree foot part can be used for a variety of panel thicknesses
  • Disc covers the hole to prevent dust and dirt gaining access
  • For twist protection: Variants with additional stick
prikaži več izdelkov

Zahtevajte svojo individualno ponudbo zdaj

Application The connector clips used here have been designed for electronic cables and cable sets used in the automotive industry. These parts are related to a connector and then secured to a surface depending on the requirement.
Anti rotation (Yes / No) NO
Colour Black (BK)
Fixation Method Fir tree for round holes
Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Pack Cont. 500pcs.
Package Content packed in bag
PART DESCRIPTION YCC-FT6-S-PA66HIRHS-BK
Product Group Connector Clips for round holes

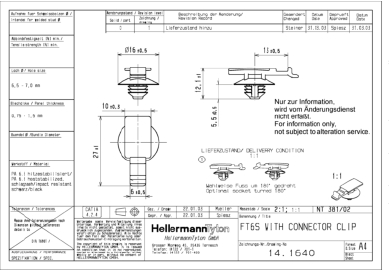

Short Description Connector Clip, round hole 6.5 - 7.0 mm, fir tree, high impact modified, heat stabilised, black
Type of connection USCAR11
Disc ∅ 16mm
for Hole ∅ (FH) 6.5 - 7.0 mm
for Panel Thickness min - max 0.8 - 1.5 mm
Height (H) 12.1mm
Length (L) 27.0mm
Length of Fir Tree 5.5mm
Panel Thickness max. 0.75 - 1.5mm
Weight/Unit 0.00078kg
Width (W) 16.0mm
CE Certification No
CSA Certified No
ELV compliant (Article 4 - 2) YES
Flammability UL 94 HB
Hazardous Goods No
Operating Temperature -40 °C to +105 °C
Specifications
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UV-Stabilised (Yes/No) No
Country of Origin DE
Customs Number 39269097
GTIN-13 / EAN 4031026218274
Packaging 1 - Height (m) 0.15m
Packaging 1 - Length (m) 0.3m
Packaging 1 - Qty 500
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.0117
Packaging 1 - Weight (kg) 0.403862kg
Packaging 1 - Width (m) 0.26m
Packaging 3 - Height (m) 0.184m
Packaging 3 - Length (m) 0.58m
Packaging 3 - Qty 10000
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.0406
Packaging 3 - Weight (kg) 8.67724kg
Packaging 3 - Width (m) 0.38m
Packaging 4 - Height (m) 1.248m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 240000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.198
Packaging 4 - Weight (kg) 229.32kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000127
ETIM 8.0 Key EC000127
ETIM 9.0 Key EC000127
UNSPSC Key 39121702
