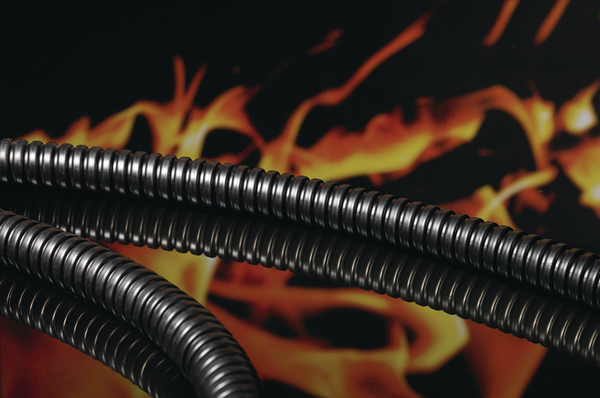

Metallic conduits with plastic coating : LFHCS63

LFHCS Galvanised Steel Conduit with LFH Coating black ø63mm reel 10m, Številka proizvoda: 166-30907

Lastnosti

  • Self-extinguishing to UL94 V0
  • Low smoke, low toxicity
  • High compression, tensile and impact strength
  • Very flexible
  • Halogen, sulphur and phosphorus free

Certifikati in standardi

Uporaba

Rail industry, underground stations, tunnels, public buildings, wherever high fire protection is required.

LFHCS Galvanised Steel Conduit, LFH Coating so primerne za uporabo v naslednjih industrijskih panogah

Colour Black (BK)
Conduit Model Metallic with plastic coating
Features and Benefits Flexible galvanised steel conduit with highly flame resistant, low smoke and low toxicity coating.
Pack Cont. 10m
Package Quantity per Reel
PART DESCRIPTION LFHCS63-GS/PO-BK
Product Family LFHCS Galvanised Steel Conduit, LFH Coating
Product Group Metallic conduits with plastic coating
Short Description LFHCS Galvanised Steel Conduit with LFH Coating black ø63mm reel 10m
Diameter (D) 57.0mm
Inside Ø (ID) 57.0mm
Length (L) 10m
Min. Bending Radius (R) 115mm
Nominal ∅ 63mm
Nominal ∅ (imperial) 2-1/2"
Outside Ø (OD) 64.5mm
Weight 1126g/m
Electrical characteristics Not specified
ELV compliant Dir. Art. 4 (2) YES
EN61386 Classification with compression fittings
Flammability UL 94 V0
Halogenfree Yes
Hazardous good No
IP-Rating IP66 (in conjunction with HG fittings)
Material Galvanised Steel (GS), Polyolefin (PO)
Operating Temperature - °C -25 °C to +90 °C, intermittent +100 °C
Specifications
Specifications BS EN 61386-23:2004
EAN / GTIN 4031026306896
Packaging 1 - Height (m) 0.25m
Packaging 1 - Length (m) 0.59m
Packaging 1 - Qty 10
Packaging 1 - Type Reel
Packaging 1 - Volume (m³) 0.08703
Packaging 1 - Weight (kg) 11.3kg
Packaging 1 - Width (m) 0.59m
Reel Length 10m
Weight 11.3kg
ETIM 6.0 EC001179
ETIM 7.0 Key EC001179
