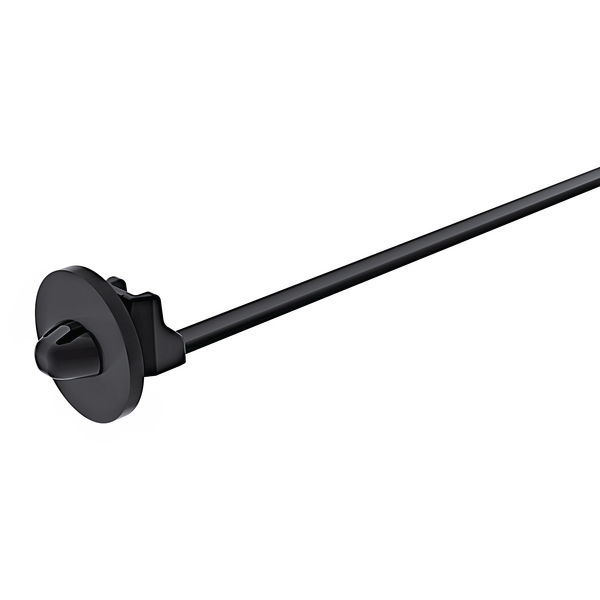

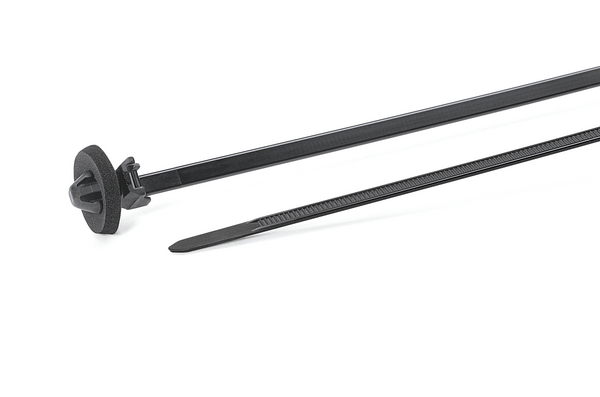

1-Piece Fixing Ties with Arrowhead, with Disc, sealed : T50SOSSFT6.5E-MDL
1-Piece fixing tie 158.8x4.6 mm, with arrowhead, heat stabilised, black, Cikkszám: 156-00264
Tulajdonságok
- Easy to assemble without the need for a tool
- Arrowhead simply locks into place
- Disc adjusts the tie for pressures from various directions
- Cable tie head always situated in defined position

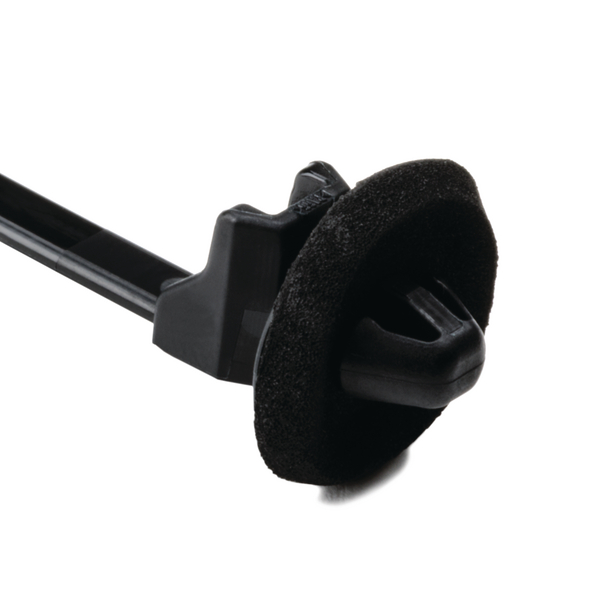

- Cellular rubber seal minimises access of dust, dirt and water
- T50SOSSFT6.5E-MD and T60SOSSFT6.5E-MD made from PA6.6 HS are tested acc. IEC60529 and fulfil IP67
Tanúsítványok
Felhasználás
The parts are mainly used in the automotive industry, e.g. for door harnesses.
Fixing Ties, sealed, for Round Holes az alábbi iparágban használhatóak
More products in this product group
1-Piece Fixing Ties with Arrowhead, with Disc, sealed >| Application Tool | MK3PNSP2, MK3SP, MK6, MK7HT, MK7P, MK20, MK21, EVO7, EVO9 |
| Colour | Black (BK) |
| Fixation Method | Arrowhead |
| Fixing Hole Shape | Circular |
| Identification Plate Position | none |

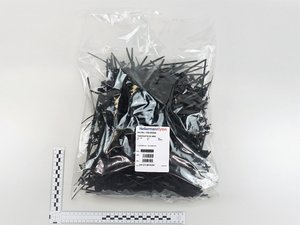

| Pack Cont. | 4000pcs. |
| Package Quantity per | Bag |
| PART DESCRIPTION | T50SOSSFT6.5E-MDL-PA66HS-BK |
| Product Family | Fixing Ties, sealed, for Round Holes |
| Product Group | 1-Piece Fixing Ties with Arrowhead, with Disc, sealed |
| Releasable Closure (Yes/No) | No |
| Short Description | 1-Piece fixing tie 158.8x4.6 mm, with arrowhead, heat stabilised, black |
| Tie Closure | plastic pawl |
| Type | 156-00264 |
| Variant | Outside Serrated |
|
|
|
| Bundle ∅ max. | 30.0mm |
| Bundle ∅ min. | 1.5mm |
| Disc ∅ | 16.0mm |
| for Hole ∅ (FH) | 6.3 - 6.7 mm |
| for Panel Thickness min - max | 0.6 - 1.8 mm |
| for Panel Thickness min - max | 0 - 0.1 " |
| Height (H2) | 16.0mm |

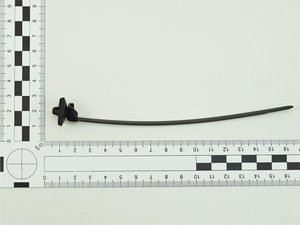

| Length (L) | 158.8mm |
| Min.Tensile Strength | 225N |
| Panel Thickness max. | 0.6 – 1.8mm |
| Thickness (T) | 1.3mm |
| Width (W) | 4.6mm |
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | UL 94 V2 |
| Hazardous good | No |
| Material | Polyamide 6.6, heat stabilised (PA66HS) |
| Operating Temperature - °C | -40 °C to +105 °C, (+105 °C for 500 h) |
| Specifications |
|
|
|
|
| EAN / GTIN | 4031026269931 |
| Packaging 1 - Height (m) | 0.3m |
| Packaging 1 - Length (m) | 0.625m |
| Packaging 1 - Qty | 500 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.0825m³ |
| Packaging 1 - Weight (kg) | 0.850538kg |
| Packaging 1 - Width (m) | 0.44m |
| Packaging 3 - Height (m) | 0.368m |
| Packaging 3 - Length (m) | 0.584m |
| Packaging 3 - Qty | 3500 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.083m³ |
| Packaging 3 - Weight (kg) | 6.773766kg |
| Packaging 3 - Width (m) | 0.386m |
| Packaging 4 - Height (m) | 1.249m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 42000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.199m³ |
| Packaging 4 - Weight (kg) | 102.324kg |
| Packaging 4 - Width (m) | 0.8m |
| Weight | 0.783kg |
| ETIM 6.0 | EC000046 |
| ETIM 7.0 Key | EC000046 |
| UNSPSC Key | 39121703 |
