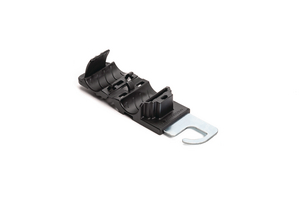

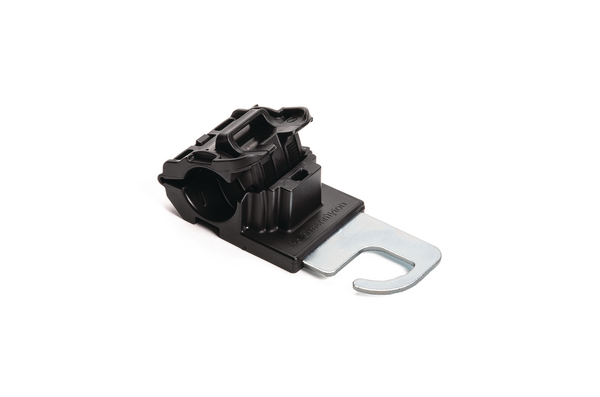

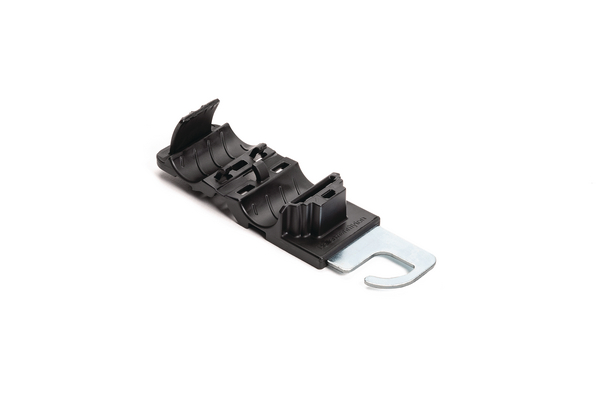

P-clamp short, Ø5.6 mm, Dmin=12.7mm, Dmax=19.5mm, 180°, black, 280pcs.
Cikkszám 151-02875 | RCBHANGER-PA66HIRHSUV/ZN-BK Részletek

  • Impact modified, heat and UV stabilized PA66 provides long-term durability in solar applications.
  • One-piece ratchet closure design allows for easy installation during pre- or final assembly.
  • Release feature allows for quick adjustments and maintenance.
  • First Solar specific steel mounting hanger tolerates high torque and is treated to resist chemicals.

Kérje egyedi ajánlatát most

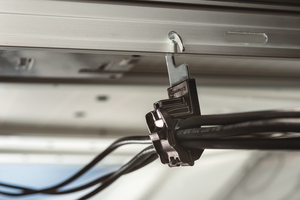

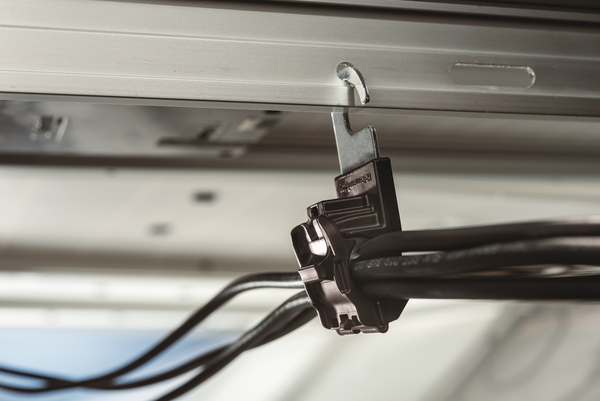

Application The Series 6 Ratchet P-Clamp Solar Hanger offers one-handed, toolless simplicity and size versatility for managing wires and cables on First Solar modules. The robust design and solar-optimized materials make it ideal for heavy duty, outdoor applications. The one-piece adjustable clamp can be closed by hand to the desired diameter, replacing multiple sizes of fixed diameter fasteners. The integrated release feature enables easy and nondestructive removal of cables by inserting a flat-head screwdriver. This allows the clamp to be reused without removing it.
Colour Black (BK)
Description The Series 6 Ratchet P-Clamp Solar Hanger offers one-handed, toolless simplicity and size versatility for managing wires and cables on First Solar modules. The robust design and solar-optimized materials make it ideal for heavy duty, outdoor applications. The one-piece adjustable clamp can be closed by hand to the desired diameter, replacing multiple sizes of fixed diameter fasteners. The integrated release feature enables easy and nondestructive removal of cables by inserting a flat-head screwdriver. This allows the clamp to be reused without removing it.
Fixation Method Screw Mounting
Key product features vibration absorbing, removable, releasable, for multiple routing
Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV), Zinc plated (ZN)
Pack Cont. 280pcs.
Package Content packed in box
PART DESCRIPTION RCBHANGER-PA66HIRHSUV/ZN-BK
Product Family Ratchet P-Clamp Hanger
Product Group Fixing elements for tubes and harnesses
Variant Short
Angle 180°
Bundle Diameter max (metric) 19.5mm
Bundle ∅ 12.7-19.5mm
Bundle ∅ min. 12.7mm
for Hole ∅ (FH) 5.6 mm
Height (H) 24.8mm
Height (H2) 35.5mm
Length (L) 115.4mm

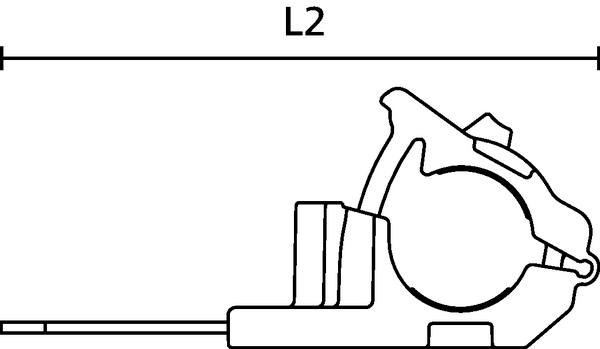

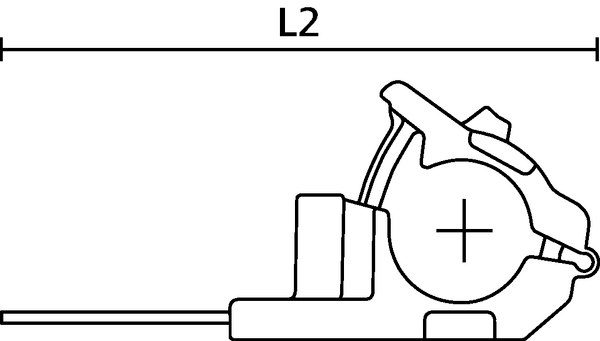

Length (L2) 81.7mm
Min.Tensile Strength 445N
Weight/Unit 0.01kg

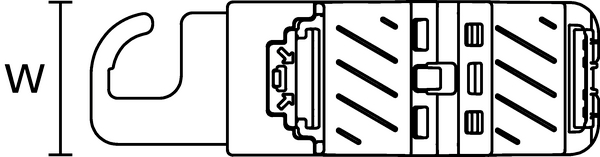

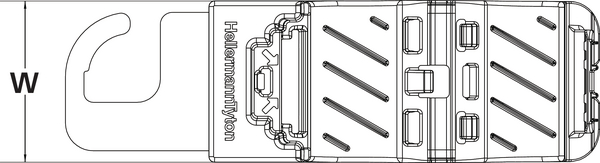

Width (W) 34.9mm
Width (W2) 30.0mm
CE Certification No
CSA Certified No
ELV compliant (Article 4 - 2) YES
Flammability UL 94 HB
Halogen-free Yes
Hazardous Goods No
Operating Temperature -40 °C to +105 °C
Plenum Rating AH-2
Specifications
UL Listed (US and Canada) Yes
UL Recognized (US and Canada) No
UL-File Number E64139
UV-Stabilised (Yes/No) Yes
Country of Origin US
Customs Number 39269097
GTIN-13 / EAN 4031026663210
Packaging 1 - Qty 280
Packaging 1 - Type bag
Packaging 1 - Weight (kg) 2.800001kg
Packaging 3 - Height (m) 0.219075m
Packaging 3 - Length (m) 0.606425m
Packaging 3 - Qty 280
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.0529
Packaging 3 - Weight (kg) 3.570001kg
Packaging 3 - Width (m) 0.3984625m
Packaging 4 - Height (m) 1.239m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 4200
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.189
Packaging 4 - Weight (kg) 74.55kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000127
ETIM 8.0 Key EC000127
ETIM 9.0 Key EC000127
UNSPSC Key 39121702
