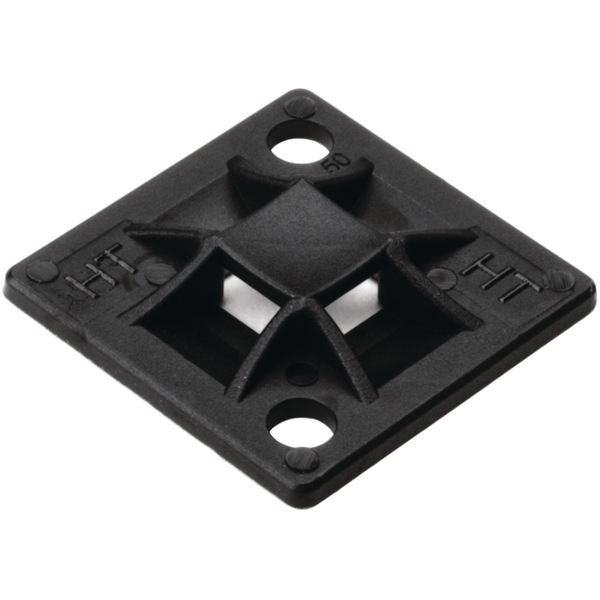

Cable tie mount for screw fixation, Wmax=4.0mm, ⌀3.1 mm, M3 Screw, black, 100pcs.
Številka proizvoda 151-10911
| QM20-PA66-BK
|
Copied

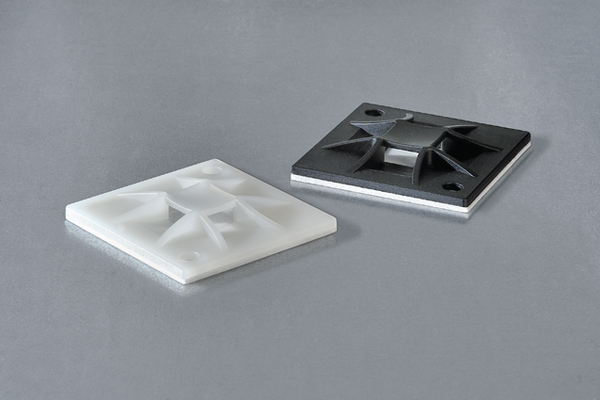

- Screwable or self-adhesive versions
- 4-way entry for Q-ties
- Perfect for combination with Q-ties
- Pre-assembly feature
- Ensures hold on Q-ties in difficult situations like vertical mounting positions
Zahtevajte svojo individualno ponudbo zdaj
Zahtevajte ponudbo
More products in this product group:
| Application | Q-mounts are ideally suited for holding our innovative Q-ties in place. They would perfectly fit to all applications where a reliable and durable fixation is required. |
| Colour | Black (BK) |
| Fixation Method | Screw Mounting and Adhesive |
| For Ties | Q-Ties |
| Material | Polyamide 6.6 (PA66) |
| Mounting Screw Type | M3 Screw |
| PART DESCRIPTION | QM20-PA66-BK |

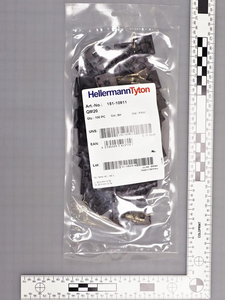

| Package Content | 100pcs. |
| Package Content packed in | bag |
| Product Family | Q-mount Series QM |
| Product Group | Q-Series |
| Short Description | Fixing Mount 20 x 20 black |
| Type | QM20 |
| Weight/Unit | 0.00049kg |
Prenos
| CE Certification | Yes |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 V2 |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +85 °C |
| ROHS compliant | Yes |
| Specifications |
|
|
|
Source products are manufactured with plastics recovered from recycled waste or marine environments, derived from renewable plant-based sources, or use materials with lower equivalent emissions. HellermannTyton also offers product solutions that – by design – reduce waste or support reusability and recyclability. Sustainable design focuses on product solutions that reduce or avoid waste, i.e. products that can be completely or partially dismantled and repositioned, thus supporting reuse and recyclability. Longevity is not part of this. |
| Specifications | ANSI/UL 1565, ANSI/UL 62275, ANSI/UL 746B |
| UL File link | Link |
| UL Recognized (US and Canada) | Yes |
| UL Recognized (US) | Yes |
| UL-File Number | E65344 |
|
|
|
| Country of Origin | DE |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026413709 |
| Packaging 1 - Height (m) | 0.015m |
| Packaging 1 - Length (m) | 0.275m |
| Packaging 1 - Qty | 100 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.000495m³ |
| Packaging 1 - Weight (kg) | 0.05451kg |
| Packaging 1 - Width (m) | 0.12m |
| Packaging 3 - Height (m) | 0.204m |
| Packaging 3 - Length (m) | 0.591m |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.048m³ |
| Packaging 3 - Width (m) | 0.398m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Type | pallet |
| Packaging 4 - Width (m) | 0.8m |
