Cable Tie Mounts Q-Series QM20A

Q-Mount Series QMA, self adhesive, screwable, Številka proizvoda: 151-10914

Lastnosti

  • Screwable or self adhesive versions
  • Perfect for combination with Q-ties
  • 4-way entry for cable ties
  • Adhesive with high pull-off force
  • Locks cable tie in vertical position, means the hands are free to apply cables

Certifikati in standardi

Uporaba

Q-mounts are ideally suited for holding our innovative Q-ties in place. They would perfectly fit to all applications where a reliable and durable fixation is required. Self adhesive versions of our Q-Mounts are suitable for applications where using screws, nuts, bolts or drilling holes to fix cables is problematic, or not the first choice.

Q-Mount Series QMA, self adhesive, screwable so primerne za uporabo v naslednjih industrijskih panogah

  • Automotive Industry Automotive Industry
  • Electronics Industry Electronics Industry
Colour Black (BK)
Description Short (BMEcat) (max. 150 characters) Screw Fixing Cable Tie Mount self adhesive 20 x 20 black
Fixation Method Screw Mounting and Adhesive
Pack Cont. 100pcs.
Package Quantity per Bag
PART DESCRIPTION QM20A-PA66-BK
Product Family Q-Mount Series QMA, self adhesive, screwable
Product Group Cable Tie Mounts Q-Series
Type QM20A-PA66-BK-C1

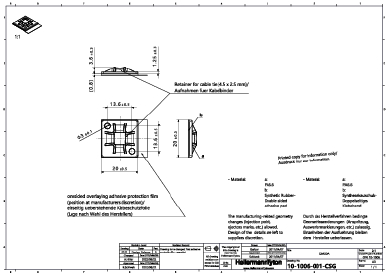

Fixing Hole Centres (F) 13.5mm
Fixing Hole Centres (F) (imperial) 0.53"
for Hole ∅ (FH) 3.1 mm
Height (H) 3.7mm
Length (L) 20.0mm
Strap Width max. (G) 4.0mm
Strap Width max. (G) (imperial) 0.14"
Width (W) 20.0mm
Adhesive Synthetic rubber with base of polyethylene foam
Adhesive Operating Temperature -40 °C to +60 °C
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2 (excluding adhesive)
Halogenfree Yes
Hazardous good No
Material Polyamide 6.6 (PA66)
Operating Temperature - °C -40 °C to +85 °C
Specifications
EAN / GTIN 4031026413761
Packaging 1 - Height (m) 0.04m
Packaging 1 - Length (m) 0.12m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00127
Packaging 1 - Weight (kg) 0.066804kg
Packaging 1 - Width (m) 0.265m
Packaging 3 - Height (m) 0.204m
Packaging 3 - Length (m) 0.591m
Packaging 3 - Qty 12000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.048
Packaging 3 - Weight (kg) 8.66648kg
Packaging 3 - Width (m) 0.398m
Packaging 4 - Height (m) 1.235m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 240000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.186
Packaging 4 - Weight (kg) 194.56kg
Packaging 4 - Width (m) 0.8m
Weight 0.0609kg
ETIM 6.0 EC000449
UNSPSC Key 39121717
