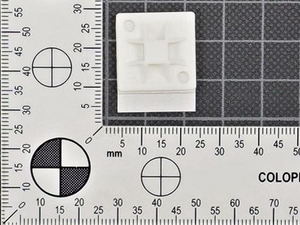

Cable tie mount for adhesive use, Ø3.1 mm, natural, 100pcs.
Številka proizvoda 151-10904 | QM20A-PA66-NA Podrobnosti

  • Screwable or self adhesive versions
  • Perfect for combination with Q-ties
  • 4-way entry for cable ties
  • Adhesive with high pull-off force
  • Locks cable tie in vertical position, means the hands are free to apply cables
prikaži več izdelkov

Zahtevajte svojo individualno ponudbo zdaj

Application Q-mounts are ideally suited for holding our innovative Q-ties in place. They would perfectly fit to all applications where a reliable and durable fixation is required. Self adhesive versions of our Q-Mounts are suitable for applications where using screws, nuts, bolts or drilling holes to fix cables is problematic, or not the first choice.
Colour Natural (NA)
Fixation Method adhesive
Material Polyamide 6.6 (PA66)
Pack Cont. 100pcs.
Package Content packed in bag
PART DESCRIPTION QM20A-PA66-NA
Product Family Q-Mount Series QMA, self-adhesive
Product Group Cable tie mounts Q-Series
Short Description Screw Fixing Cable Tie Mount self adhesive 20 x 20 natural
Fixing Hole Centres (F) 13.5mm
Fixing Hole Centres (F) 0.53"
for Hole ∅ (FH) 3.1 mm
Height (H) 3.7mm
Length (L) 20.0mm
Strap Width max. (G) 4.0mm
Strap Width max. (G) 0.14"
Weight/Unit 0.000618kg
Width (W) 20.0mm
Adhesive Synthetic rubber with base of polyethylene foam
Adhesive Operating Temperature -40 °C to +60 °C
CE Certification No
CSA Certified No
ELV compliant (Article 4 - 2) YES
Flammability UL 94 V2 (excluding adhesive)
Halogen-free Yes
Hazardous Goods No
Operating Temperature -40 °C to +60 °C
Specifications
UV-Stabilised (Yes/No) No
Country of Origin DE
Customs Number 39269097
GTIN-13 / EAN 4031026413754
Packaging 1 - Height (m) 0.02m
Packaging 1 - Length (m) 0.275m
Packaging 1 - Qty 100
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.00066
Packaging 1 - Weight (kg) 0.06731kg
Packaging 1 - Width (m) 0.12m
ETIM 7.0 Key EC000449
ETIM 8.0 Key EC000449
ETIM 9.0 Key EC000449
UNSPSC Key 39121717
