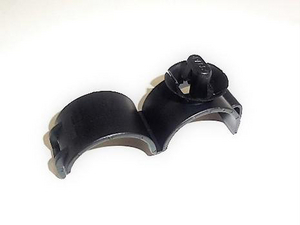

Corrugated tube clip for hole (oval), Ø28.0mm, black, 500pcs.
Številka proizvoda 151-00598 | RCC D28-PA66HIRHS-BK Podrobnosti

  • Clamps for corrugated tubing for a variety of nominal diameters
  • Arrowhead simply locks into place
  • Tube is guided accurately by clicking
  • Axial slipping is prevented by the inside profile of the clamp
  • Type RCCD for oval holes 6.2 x 12.2 mm
  • OCTCSFT6,5 clamp for corrugated tubes for nom. diamter of 55-80 mm.
  • CTC-L profile clamp can also fastened to a metal edge
prikaži več izdelkov

Zahtevajte svojo individualno ponudbo zdaj

Application These clamps are used for example in the automotive industry, in the production of cable harnesses and in the electrical industry. Their quick and easy mounting is the reason for their universal success wherever corrugated tubing and pipes have to be fixed quickly and securely.
Colour Black (BK)
Fixation Method with Arrowhead / Push Mount (Mounts)
Key product features for convoluted tubes or with rib
Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Pack Cont. 500pcs.

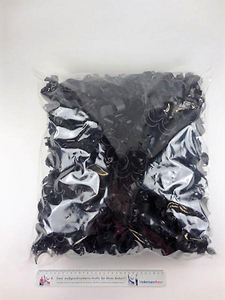

Package Content packed in bag
PART DESCRIPTION RCC D28-PA66HIRHS-BK
Product Group Fixing Elements for Corrugated Tubing, with Arrowhead
Short Description Fixing Elements with Fir Tree for Corrugated Tubing black
Attach to Ø 28.0 mm
Disc ∅ 22.0mm
for Hole ∅ (FH) 6.75 x 13.25 mm
for Panel Thickness min - max 0.7 - 3 mm
Height (H) 37.0mm
Length (L) 37.0mm
Nominal ∅ 28.0mm
Panel Thickness max. 0.7 - 3.0mm
Weight/Unit 0.005402kg
Width (W) 22.0mm
ELV compliant (Article 4 - 2) YES
Flammability UL 94 HB
Hazardous Goods No
Operating Temperature -40 °C to +105 °C
Specifications
Country of Origin DE
Customs Number 39269097
GTIN-13 / EAN 4031026280899
Packaging 1 - Height (m) 0.2m
Packaging 1 - Length (m) 0.47m
Packaging 1 - Qty 500
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.05123
Packaging 1 - Weight (kg) 2.744597kg
Packaging 1 - Width (m) 0.545m
Packaging 3 - Height (m) 0.368m
Packaging 3 - Length (m) 0.584m
Packaging 3 - Qty 1500
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.083
Packaging 3 - Weight (kg) 9.053791kg
Packaging 3 - Width (m) 0.386m
Packaging 4 - Height (m) 1.248m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 18000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.198
Packaging 4 - Weight (kg) 129.66kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000464
ETIM 8.0 Key EC000464
ETIM 9.0 Key EC000464
UNSPSC Key 39121702
