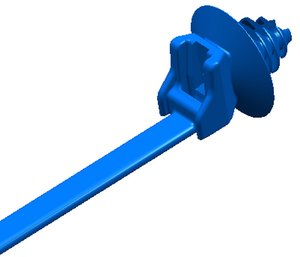

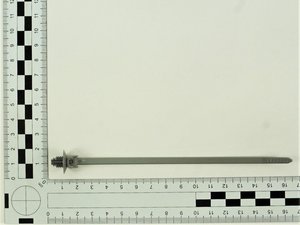

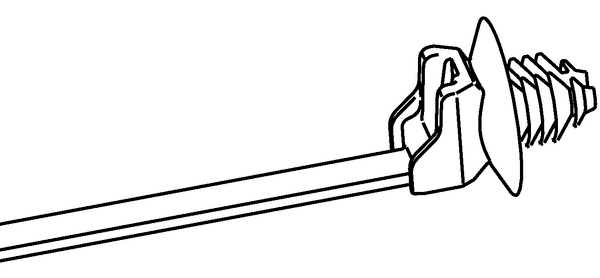

Fixing tie for hole (round), outside serrated, Ø1.6-32.0mm, grey, 500pcs.
Cikkszám 126-00100 | T50SOSFT6E-PA46-GY Részletek

  • Cable tie head always situated in defined position
  • Easy to assemble without the need for a tool
  • Disc adjusts tie for pressure from various directions and minimises access of dust and dirt

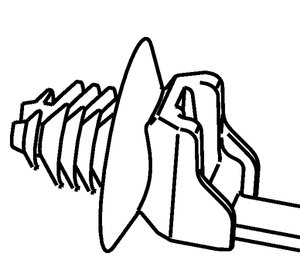

  • Fir tree foot part can be used for a variety of panel thicknesses
  • Suitable for use within threaded holes
mutasson többet

Kérje egyedi ajánlatát most

Application Primarily designed for fixing cable harnesses in the automotive industry, their simplicity and ease of use has resulted in these parts being used in other industries, for example aviation, switch gear manufacturer, white goods manufacturer.
Application Tool MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7, EVO7SP, EVO7i, EVO9, EVO9SP
Colour Grey (GY)
Fixation Method Fir tree for round holes
Identification Plate Position none
Material Polyamide 4.6 (PA46)
Pack Cont. 500pcs.

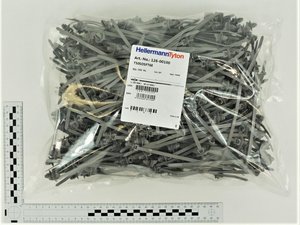

Package Content packed in bag
PART DESCRIPTION T50SOSFT6E-PA46-GY
Product Family Fir tree parts FT6
Product Group 1-piece fixing ties with fir tree, with disc, for round holes
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Variant Outside Serrated
Bundle Diameter max (metric) 32.0mm
Bundle ∅ 1.6-32.0mm
Bundle ∅ min. 1.6mm
Disc ∅ 16.0mm
for Hole ∅ (FH) 6.5 - 7.0 mm
for Panel Thickness min - max 0.8 - 3 mm

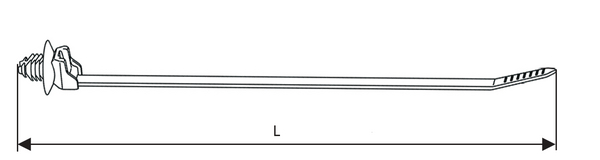

Length (L) 160mm
Min.Tensile Strength 150N
Weight/Unit 0.001441kg
Width (W) 4.7mm
ELV compliant (Article 4 - 2) YES
Hazardous Goods No
Operating Temperature -40 °C to +130 °C, (+150 °C, 5000 h; +195 °C, 500 h)
Specifications
Country of Origin DE
Customs Number 39269097
GTIN-13 / EAN 4031026317045
Packaging 1 - Height (m) 0.11m
Packaging 1 - Length (m) 0.395m
Packaging 1 - Qty 500
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.01955
Packaging 1 - Weight (kg) 0.749635kg
Packaging 1 - Width (m) 0.45m
Packaging 3 - Height (m) 0.368m
Packaging 3 - Length (m) 0.584m
Packaging 3 - Qty 5000
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.083
Packaging 3 - Weight (kg) 8.31635kg
Packaging 3 - Width (m) 0.386m
Packaging 4 - Height (m) 1.248m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 60000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.198
Packaging 4 - Weight (kg) 120.78kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
