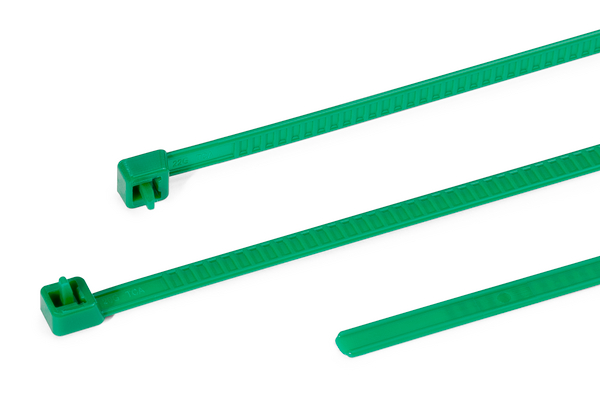

Cable ties outside serrated for marking : LR55R
Releasable Cable Tie 195x4.7 mm, green, Číslo dílu: 115-00005
Vlastnosti
- Releasable and reusable cable tie
- Various colours for applications needing colour coding
- Extended trigger for simple and quick release of ties
- Risk of accidental release is minimised
- Outside serration prevents damage to cable insulation
Certifikáty a normy
Použití
Releasable cable ties of our LR55-Series offer some extra benefits. Their serration is on the outside of the cable tie. This will minimise the risk of damage to cables or other elements. Additionally LR55 cable ties are available in different colours – optimally suited for temporary identification within logistic, packaging, cable harness production or for testing purposes. The strap is released when pushing the extended pawl upwards. The risk of opening the cable tie accidentally is minimised.
releasable je vhodný pro následující odvětví průmyslu
-
Electronics Industry
-
Aerospace Industry
-
Defence Industry
Více výrobků v této skupině výrobků
Cable ties outside serrated for marking >| Colour | Green (GN) |
| Identification Plate Position | none |
| Pack Cont. | 25pcs. |
| Package Quantity per | pcs. |
| PART DESCRIPTION | LR55R-PA66-GN |
| Product Family | releasable |
| Product Group | Cable ties outside serrated for marking |
| Releasable Closure (Yes/No) | Yes |
| Short Description | Releasable Cable Tie 195x4.7 mm, green |
| Tie Closure | plastic pawl |
| Type | LR55R.NG1P |
| Variant | Outside Serrated |
|
|
|
| Bundle ∅ max. | 50.0mm |
| Bundle ∅ min. | 2.0mm |
| Length (L) | 195mm |
| Min.Tensile Strength | 245N |
| Thickness (T) | 1.2mm |
| Width (W) | 4.7mm |
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | UL 94 V2 |
| Hazardous good | No |
| Material | Polyamide 6.6 (PA66) |
| Operating Temperature - °C | -40 °C to +85 °C |
| Specifications |
|
|
|
|
| EAN / GTIN | 4031026251677 |
| Packaging 1 - Height (m) | 0.04m |
| Packaging 1 - Length (m) | 0.12m |
| Packaging 1 - Qty | 25 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.00127m³ |
| Packaging 1 - Weight (kg) | 0.03301kg |
| Packaging 1 - Width (m) | 0.265m |
| Packaging 2 - Height (m) | 0.17m |
| Packaging 2 - Length (m) | 0.288m |
| Packaging 2 - Qty | 1000 |
| Packaging 2 - Type | Carton |
| Packaging 2 - Volume (m³) | 0.0087m³ |
| Packaging 2 - Weight (kg) | 1.4504kg |
| Packaging 2 - Width (m) | 0.178m |
| Packaging 3 - Height (m) | 0.204m |
| Packaging 3 - Length (m) | 0.591m |
| Packaging 3 - Qty | 4000 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.048m³ |
| Packaging 3 - Weight (kg) | 6.4516kg |
| Packaging 3 - Width (m) | 0.398m |
| Packaging 4 - Height (m) | 1.164m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 96000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.117m³ |
| Packaging 4 - Weight (kg) | 177.72kg |
| Packaging 4 - Width (m) | 0.8m |
| Weight | 0.0275kg |
| ETIM 6.0 | EC000046 |
| ETIM 7.0 Key | EC000046 |
