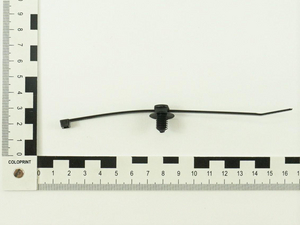

Fixing tie for hole (round), inside serrated, Ø5.0-30.0mm, black, 500pcs.
Číslo dílu 150-31090 | T30RFT6LG-PA66HS/PA66HIRHS-BK Podrobnosti na

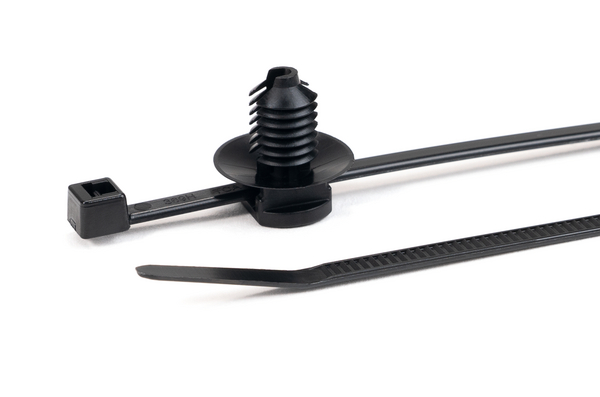

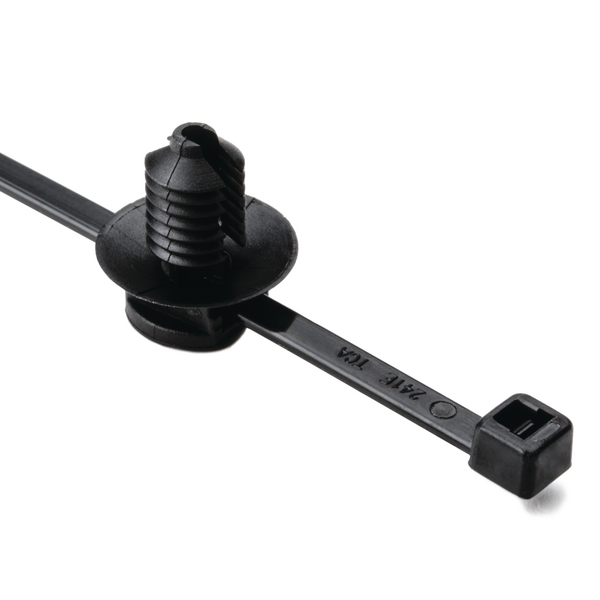

  • Pre-assembled 2-piece fixing tie with fir tree foot part
  • Cable tie head can be moved after bundling
  • Easy to assemble without the need for a tool
  • Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
  • Fir tree foot part can be used for a variety of panel thicknesses
  • Suitable for use within threaded holes
ukázat více

Vyžádejte si nyní individuální nabídku

Application Primarily designed for fixing cable harnesses in the automotive industry their simplicity, and ease of use, has seen these parts used in everything from aircraft, to switch-gear, to washing machines.
Application Tool MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7, EVO7SP, EVO7i
Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
Colour Black (BK)
Description These two-piece fixings are supplied ready assembled and offer a simple and versatile method of bundling and fixing cables. The fir-tree base will easily push into pre-punched holes in panels or threaded, blind, holes and offers a very secure fixing. The two-piece design enables the head of the tie to be orientated to the required position to ease assembly, whilst the 'disc' on the top of the fir tree covers the hole and minimises the ingress of water and dirt.
Fixation Method Fir tree for round holes
Foot Part Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Identification Plate Position none
Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Pack Cont. 500pcs.

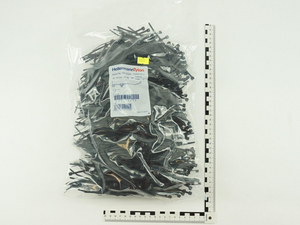

Package Content packed in bag
PART DESCRIPTION T30RFT6LG-PA66HS/PA66HIRHS-BK
Product Family Fir tree parts FT6
Product Group 2-Piece fixing ties with fir tree, with disc, for round holes
Releasable Closure (Yes/No) No
Short Description 2-Piece Fixing Tie with Fir Tree and Disc 150x3.5 black
Tie Closure plastic pawl
Variant Inside Serrated
Bundle Diameter max (metric) 30.0mm
Bundle ∅ 5.0-30.0mm
Bundle ∅ min. 5.0mm
Disc ∅ 16.0mm
for Hole ∅ (FH) 6.5 - 7.0 mm
for Panel Thickness min - max 0.8 - 6 mm
for Panel Thickness min - max 0 - 0.2 "
Height (H) 1.2mm
Height (H2) 11.1mm
Length (L) 150.0mm
Length (L2) 11.6mm
Length (L3) 17.5mm
Min.Tensile Strength 135N
Panel Thickness max. 0.75 - 6.0mm
Thickness (T) 1.1mm
Weight/Unit 0.001184kg

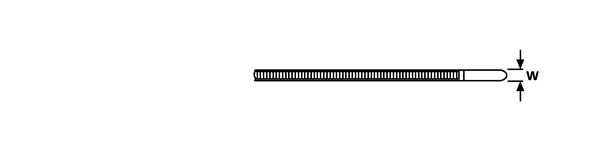

Width (W) 3.5mm
Width (W2) 9.0mm
Width (W3) 5.0mm
CE Certification No
CSA Certified No
ELV compliant (Article 4 - 2) YES
Flammability UL 94 HB
Hazardous Goods No
Nato number 5975-12-372-5598
Operating Temperature -40 °C to +105 °C
Operating Temperature Foot Part (Metric) -40 °C to +110 °C
Specifications
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UV-Stabilised (Yes/No) No
Country of Origin SG
Customs Number 39269097
GTIN-13 / EAN 4031026120294
Packaging 1 - Height (m) 0.09m
Packaging 1 - Length (m) 0.32m
Packaging 1 - Qty 500
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.0072
Packaging 1 - Weight (kg) 0.592001kg
Packaging 1 - Width (m) 0.25m
Packaging 3 - Height (m) 0.218m
Packaging 3 - Length (m) 0.599m
Packaging 3 - Qty 4000
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.0522
Packaging 3 - Weight (kg) 5.486008kg
Packaging 3 - Width (m) 0.4m
Packaging 4 - Height (m) 1.234m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 80000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.185
Packaging 4 - Weight (kg) 130.72kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
