Fixing tie for edge, Ø1.5-35.0mm, black, 500pcs.
Číslo dílu 156-01584 | T50SVCEC1-3-PA66HS/PA66HIRHS-BK Podrobnosti na

  • Pre-assembled 2-piece fixing tie with EdgeClip
  • Easy to assemble by hand
  • Cable tie head can be moved after bundling
  • For edges of 1 – 2.5 mm or 1 – 3 mm

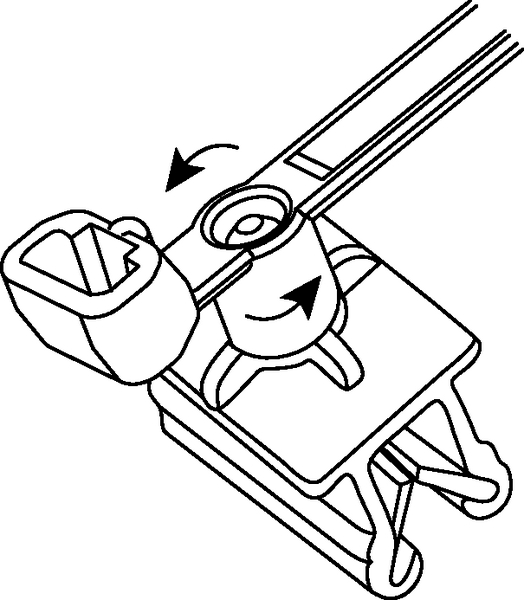

  • Can be rotated to the desired position
ukázat více

Vyžádejte si nyní individuální nabídku

Application These cable ties and EdgeClip assemblies are ideal for use where holes are not acceptable or or where adhesives will fail due to temperature problems. These assemblies are widely used for fixing and bundling cables, pipes and hoses within the automotive industry, harness making, panel buidling and electrical industry.
Application Tool MK3PNSP2, MK3SP, MK7HT, MK7P, MK20, MK21, EVO7SP, EVO7i, EVO9
Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
Colour Black (BK)
Description These EdgeClips are also mounted simply by pushing them onto an edge. A twistable EdgeClip is the ideal solution whenever flexible routing of cable bundles is required. The cable route can even be modified post-installation. The clips are available in 90° and 360° models for use with different types of cable tie. On the CBT30MR the bundle runs at the side of the clip, on the CBTO50R it runs over the centre of the clip.
Fixation Method Edge Clips with tie
Foot Part Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Identification Plate Position none
Key product features rotatable
Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Pack Cont. 500pcs.
Package Content packed in bag
PART DESCRIPTION T50SVCEC1-3-PA66HS/PA66HIRHS-BK
Product Family EdgeClip-Series, twistable
Product Group 2-piece fixing ties for edges
Bundle Diameter max (metric) 35.0mm
Bundle ∅ 1.5-35.0mm
Bundle ∅ min. 1.5mm
for Panel Thickness min - max 1 - 3 mm
Height (H) 1.4mm
Height (H2) 12.2mm
Length (L) 150.0mm
Length (L2) 15.0mm
Min.Tensile Strength 225N
Panel Thickness max. 1.0-3.0mm
Width (W) 4.7mm
Width (W2) 11.0mm
Operating Temperature -40 °C to +105 °C
Specifications
Country of Origin CN
GTIN-13 / EAN 4031026549903
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
