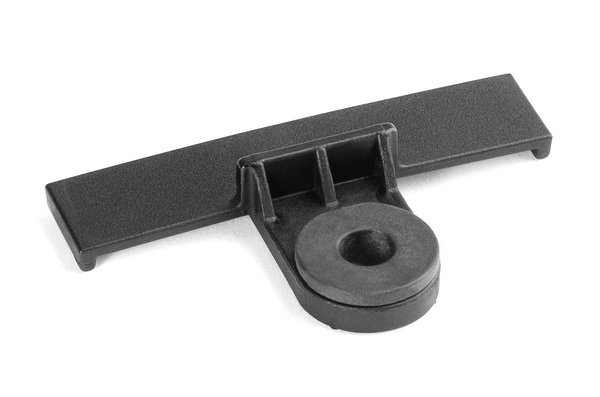

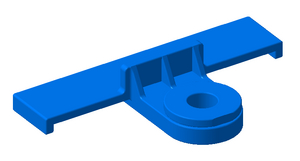

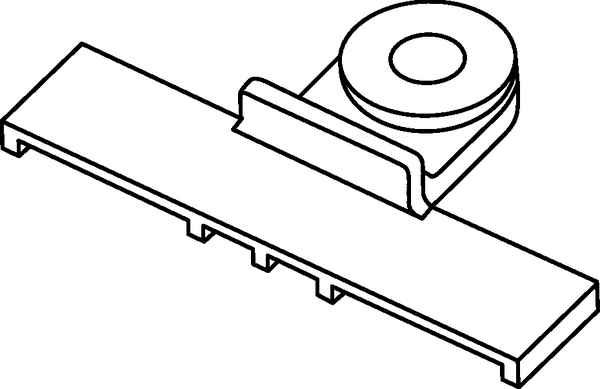

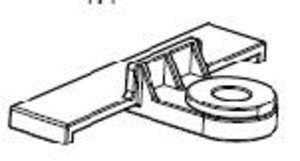

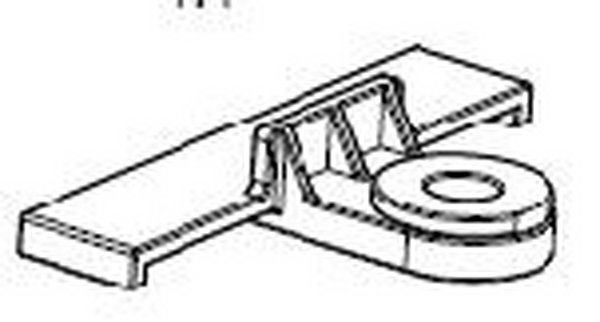

Bundling clip for screw fixation, L=60.0mm, SO=20.0mm, black, 500pcs.
Číslo dílu 156-00390
| BC-SCR6-PA66HIRHS-BK
|
Copied
- The Cable is guided at a defined distance from the fastening hole
- The plate covers the fastening hole and provides ratle protection
- The contour of the winding bar ensures tht de cable is centered
- simple installation
- tool free
ukázat více
Zobrazit méně
Vyžádat nabídku
Více výrobků v této skupině výrobků:
| Application | Bundling Clip for screws |
| Colour | Black (BK) |
| Fixation Method | screw-hole |
| Material | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| PART DESCRIPTION | BC-SCR6-PA66HIRHS-BK |
| Package Content | 500pcs. |
| Package Content packed in | bag |
| Product Family | BC-SCR6 |
| Product Group | Bundling clips for screws |
| Short Description | Bundling Clip, to screw 6.5 mm, high impact modified, heat stabilised, black |
| Type | BC-SCR6 |
| Weight/Unit | 0.00373kg |
|
|
|
| Country of Origin | PL |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026291116 |
| Packaging 1 - Height (m) | 0.15m |
| Packaging 1 - Length (m) | 0.4m |
| Packaging 1 - Qty | 500 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.018m³ |
| Packaging 1 - Weight (kg) | 1.886993kg |
| Packaging 1 - Width (m) | 0.3m |
| Packaging 3 - Height (m) | 0.368m |
| Packaging 3 - Length (m) | 0.584m |
| Packaging 3 - Qty | 3500 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.083m³ |
| Packaging 3 - Weight (kg) | 14.079751kg |
| Packaging 3 - Width (m) | 0.386m |
| Packaging 4 - Height (m) | 1.248m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 42000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.198m³ |
| Packaging 4 - Weight (kg) | 190.96kg |
| Packaging 4 - Width (m) | 0.8m |
