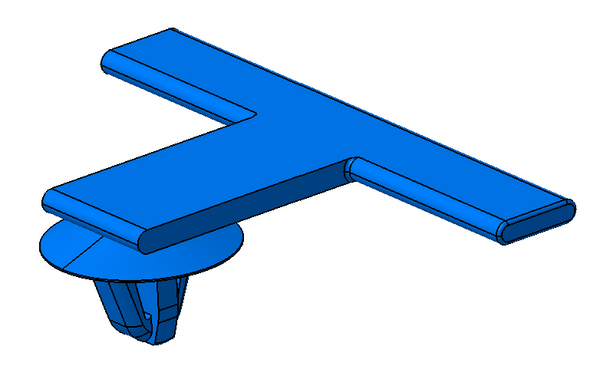

Bundling clip for hole (round), L=50.0mm, SO=20.0mm, black, 5000pcs.
Číslo dílu 151-02601 | CH20D7-PA66-BK Podrobnosti na

  • Easy to install without the need for a tool
  • Arrowhead simply locks into place
  • Disc adjusts tie for pressure from various directions and minimises access of dust, dirt and water
  • Bundles and cables routed at a set distance from punched holes
Velikost balení

Vyžádejte si nyní individuální nabídku

Application Originally designed for the Automotive industry, these clips offer simple and easy methods of securing cable hoses or pipes. They have many applications within a wide range of industries.
Colour Black (BK)
Fixation Method arrowhead
Material Polyamide 6.6 (PA66)
Pack Cont. 5000pcs.
Package Content packed in bag
PART DESCRIPTION CH20D7-PA66-BK
Product Group Bundling Clips with Fir Tree, for Distance Routing
Bundling Bar Length 50.0mm
for Hole ∅ (FH) 6.4 - 7.0 mm
for Panel Thickness min - max 0.6 - 1.4 mm
Length (L) 50.0mm
Length (L2) 20.0mm
Offset Length 20.0mm
Flammability UL 94 V2
Operating Temperature -40 °C to +85 °C
Specifications
Country of Origin GB
GTIN-13 / EAN 4031026710402
ETIM 7.0 Key EC000127
ETIM 8.0 Key EC000127
ETIM 9.0 Key EC000127
UNSPSC Key 39121702
