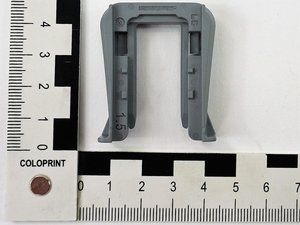

Fixing slider for connectors, T=1.5mm, grey, 1500pcs.
Číslo dílu 151-02387
| FSD1.5-PBTGF30FR-GY
|
Copied
- Color coding for panel thickness: red (2.5 mm), yellow (3.0 mm), grey (1.5 mm and 3.5mm), natural (1.0 mm and 1.5 mm)
Panel thickness is marked on the slider
Permanent fixation of the connectors in the mounting hole by using the slider
These parts are also available in V0 material (flame retardent) e.g. for public transport
Fixing slider fit for the Aptiv connector XS and SP series

Vyžádejte si nyní individuální nabídku
Vyžádat nabídku
Více výrobků v této skupině výrobků:
Fixing Slider, Group D >
Application | The slider is used to keep the plugs firmly and vibration-proof in place, even when movement acts on it. |
Colour | Grey (GY) |
Material | Polybutylene Terephthalate glass-fibre reinforced, flame retardant (PBTGF30FR) |
PART DESCRIPTION | FSD1.5-PBTGF30FR-GY |
Package Content | 1500pcs. |
Package Content packed in | bag |
Product Family |
Fixing Slider D, 1.5 mm CTCS-series |
Product Group |
Connector Accessory Fixing Slider, Group D |
Type | FSD1.5 |
Weight/Unit | 0.00791kg |
|
|
Country of Origin | PL |
Customs Number | 39269097 |
GTIN-13 / EAN | 4031026608044 |
Packaging 1 - Height (m) | 0.8m |
Packaging 1 - Length (m) | 0.6m |
Packaging 1 - Qty | 1500 |
Packaging 1 - Type | bag |
Packaging 1 - Volume (m³) | 0.192m³ |
Packaging 1 - Weight (kg) | 11.930411kg |
Packaging 1 - Width (m) | 0.4m |
Packaging 3 - Height (m) | 0.204m |
Packaging 3 - Length (m) | 0.591m |
Packaging 3 - Qty | 1500 |
Packaging 3 - Type | box |
Packaging 3 - Volume (m³) | 0.048m³ |
Packaging 3 - Weight (kg) | 12.892411kg |
Packaging 3 - Width (m) | 0.398m |
Packaging 4 - Height (m) | 1.204m |
Packaging 4 - Length (m) | 1.2m |
Packaging 4 - Qty | 30000 |
Packaging 4 - Type | pallet |
Packaging 4 - Volume (m³) | 1.156m³ |
Packaging 4 - Weight (kg) | 278.84kg |
Packaging 4 - Width (m) | 0.8m |
