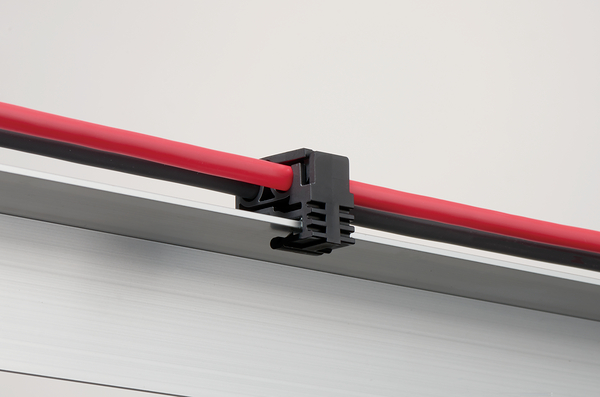

Cable clip for edge, T=1.0 mm - 3.0mm, Dmin=6.4mm, Dmax=7.1mm
Číslo dílu 151-02060
| GLEC1-2J-7-PA11W/C75S-BK
|
Copied
- Push and click closure for fixing 1 or 2 cables.
- Bundle diameter is from 6.4 to 7.1mm.
- Ideal for use where holes are not acceptable.
- Made of PA11, same as GalvaLok cable ties, GalvaLok Edge-Clip has excellent salt corrosion resistance and insulation resistance.
Vyžádat nabídku
Více výrobků v této skupině výrobků:
| Application |
For wiring construction around solar panels and outdoor galvanized steel plates. Measures to prevent snow melting agents and anti-freezing agents (calcium chloride) in mountainous areas and snowy areas. To counter salt damage at coastal areas. |
| Colour | Black (BK) |
| Material | Polyamide 11, UV-resistant (PA11W), Steel C75S (C75S) |
| PART DESCRIPTION | GLEC1-2J-7-PA11W/C75S-BK |
| Package Content | 100pcs. |
| Package Content packed in | bag |
| Product Family | GalvaLok EdgeClips series |
| Product Group | Fixing elements for cables with automatic locking feature |
| Short Description | Edge Clip (1-3 mm), hose retainer, close, UV-resistant, black |
| Type | GLEC1-2J-7 |
| UV-Stabilised | Yes |
| Weight/Unit | 0.0057kg |
| ELV compliant (Article 4 - 2) | Yes |
| Flammability | UL 94 HB |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +105 °C |
| ROHS compliant | Yes |
| Specifications |
|
|
|
Source products are manufactured with plastics recovered from recycled waste or marine environments, derived from renewable plant-based sources, or use materials with lower equivalent emissions. HellermannTyton also offers product solutions that – by design – reduce waste or support reusability and recyclability. EarthSource denotes HellermannTyton products made from polymers derived from abundant renewable plant-based sources or from the ground underneath. |
|
|
|
| Country of Origin | JP |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4944387115772 |
| Packaging 1 - Qty | 100 |
| Packaging 1 - Type | bag |
| Packaging 1 - Weight (kg) | 0.570001kg |
| Packaging 3 - Height (m) | 0.345m |
| Packaging 3 - Length (m) | 0.455m |
| Packaging 3 - Qty | 2000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0494m³ |
| Packaging 3 - Weight (kg) | 11.84002kg |
| Packaging 3 - Width (m) | 0.315m |
| Packaging 4 - Height (m) | 1.179m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 30000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.132m³ |
| Packaging 4 - Weight (kg) | 199.6kg |
| Packaging 4 - Width (m) | 0.8m |
