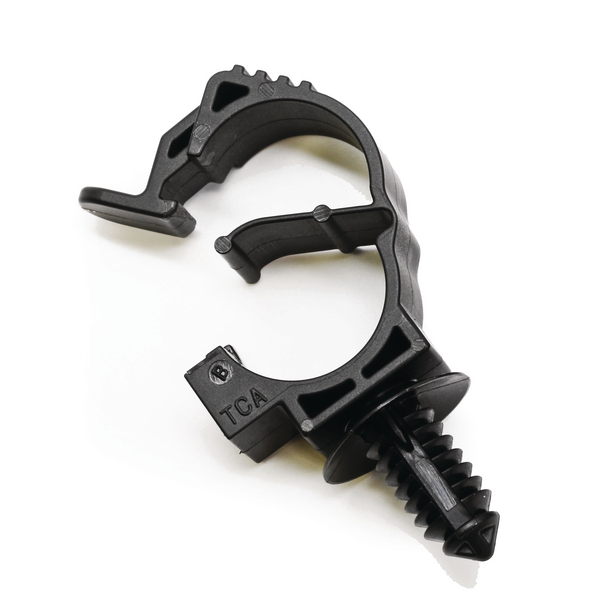

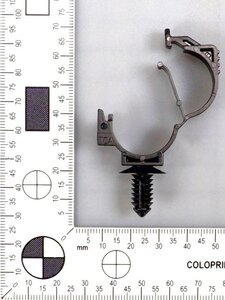

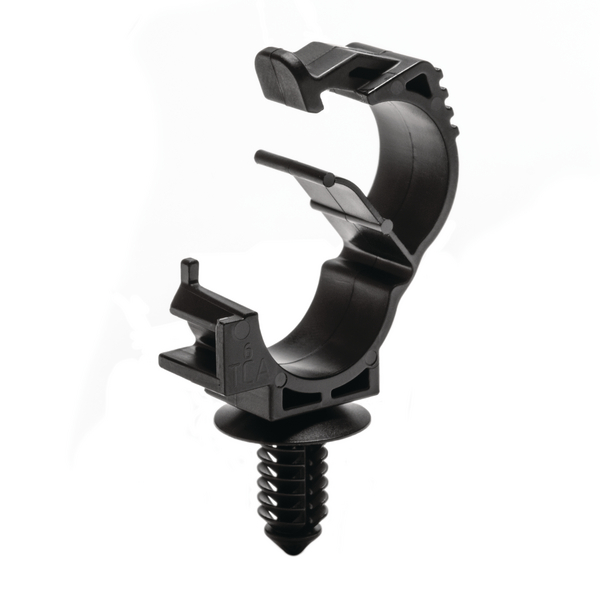

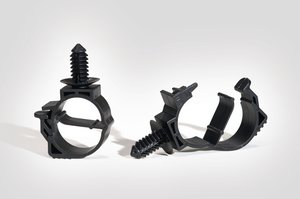

Cable clip for hole (round), T=0.6 - 8.25mm, ⌀6.1 - 6.6 mm (hexagonal)/6.1 - 7.0 mm, Dmin=15.0mm, Dmax=19.0mm, nom⌀=15.0 mm - 19.0 mm
Číslo dílu 151-01022
| LOC15-19FT6LG-PA66HIRHSUV-BK
|
Copied
- For fixing and bundling convoluted tubes and pipes
- Suitable for nearly every application
Vyžádat nabídku
Více výrobků v této skupině výrobků:
| Application | These clips offer fast and easy bundling of convuluted tubes and pipes, especially for the automotive industry. |
| Colour | Black (BK) |
| Fixation Method | Fir Tree |
| Key product features | lockable, removable |
| Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
| PART DESCRIPTION | LOC15-19FT6LG-PA66HIRHSUV-BK |
| Package Content | 2000pcs. |
| Package Content packed in | pack |
| Product Family | LOC-Series |
| Product Group | Fixing Elements for Tubes and Pipes |
| Short Description | Harness Clip, close, round hole 6.35 mm (hexagonal)/6.1 - 6.9 mm, high impact modified, heat and UV-stabilised, black |
| Type | LOC15-19FT6LG |
| UV-Stabilised | Yes |
| Weight/Unit | 0.003259kg |
| Bundle ⌀ | 15.0-19.0mm |
| Bundle ⌀ max. | 19.0mm |
| Bundle ⌀ min. | 15.0mm |
| Bundle Diameter Nom. (ND) | 15.0 mm - 19.0 mm |
| Depth (D) | 12.0mm |
| Height (H) | 47.5mm |
| Length (L) | 31.6mm |
| Panel Thickness | 0.6 - 8.25mm |
| Width (W) | 12.0mm |
| for Hole ⌀ (FH) | 6.1 - 6.6 mm (hexagonal), 6.1 - 7.0 mm |
| for Panel Thickness min - max | 0.6 - 8.3 mm |
| CE Certification | No |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | Yes |
| Flammability | UL 94 HB |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +105 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
|
|
|
| Country of Origin | MX |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026491479 |
| Packaging 1 - Qty | 2000 |
| Packaging 1 - Type | bag |
| Packaging 1 - Weight (kg) | 6.638kg |
| Packaging 3 - Height (m) | 0.216m |
| Packaging 3 - Length (m) | 0.60801m |
| Packaging 3 - Qty | 2000 |

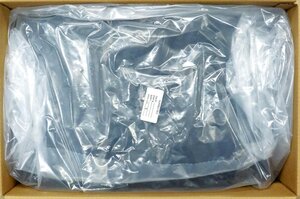

| Packaging 3 - Type | carton |
| Packaging 3 - Volume (m³) | 0.0521m³ |
| Packaging 3 - Weight (kg) | 7.403kg |
| Packaging 3 - Width (m) | 0.396875m |
| Packaging 4 - Height (m) | 1.219m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 30000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.17m³ |
| Packaging 4 - Weight (kg) | 133.045kg |
| Packaging 4 - Width (m) | 0.8m |
