Metal cable clip for edge, ⌀4.1-7.0mm, T=1.5 - 2.0mm, metal, 100pcs.
Číslo dílu 151-01699
| MSC2LP-SS304-ML
|
Copied
- Integrated design allows for easy insertion by hand.
- 1.5 - 2.0 mm panel thickness range allows for multiple applications.
- Double-compression design can accommodate up to 2 wires or cables of varying sizes.
- Presents a high extraction force for withstanding extreme conditions.
Vyžádejte si nyní individuální nabídku
Vyžádat nabídku
Více výrobků v této skupině výrobků:
| Cable ⌀ max | 7.0mm |
| Cable ⌀ min | 4.1mm |
| Colour | Metal (ML) |

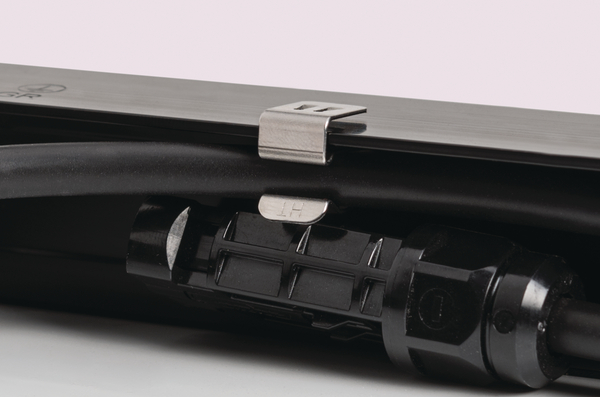

| Description | Designed for more confined areas, HellermannTyton's Low Profile Metal Edge Clip provides an excellent alternative to managing wire and PV cables where plastic fasteners are not the preferred method. Designed for effortless insertion, the Metal Edge Clip has a high extraction force that tolerates extreme environments and provides assurance that the cables are secure on a panel. The Metal Edge Clip is simple to install and can easily be removed with a flathead screwdriver. |
| Fixation Method | Edge Clip |
| Material | Stainless Steel (SS304) |
| PART DESCRIPTION | MSC2LP-SS304-ML |
| Package Content | 100pcs. |
| Package Content packed in | pack |
| Product Family | For solar panels |
| Product Group | Fixing elements for edges |
| Short Description | Metal edge clip 17x9.5 mm, 1.5 - 2 mm panel thickness |
| Type | MSC2LP |
| UV-Stabilised | Yes |
| Weight/Unit | 0.002558kg |
Stáhnout
| CE Certification | No |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | YES |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Operating Temperature | -80 °C to +538 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | Yes |
| UL Listed (US) | Yes |
| UL Recognized (US and Canada) | Yes |
| UL Recognized (US) | Yes |
| UL-File Number | E64139 |
|
|
|
| Country of Origin | US |
| Customs Number | 73269098 |
| GTIN-13 / EAN | 4031026571164 |
| Packaging 1 - Height (m) | 0.025m |
| Packaging 1 - Length (m) | 0.21m |
| Packaging 1 - Qty | 100 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.0006825m³ |
| Packaging 1 - Weight (kg) | 0.255801kg |
| Packaging 1 - Width (m) | 0.13m |
| Packaging 3 - Height (m) | 0.265m |
| Packaging 3 - Length (m) | 0.31m |
| Packaging 3 - Qty | 5000 |
| Packaging 3 - Type | carton |
| Packaging 3 - Volume (m³) | 0.0218m³ |
| Packaging 3 - Weight (kg) | 13.29kg |
| Packaging 3 - Width (m) | 0.265m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 165000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Weight (kg) | 459.57kg |
| Packaging 4 - Width (m) | 0.8m |
