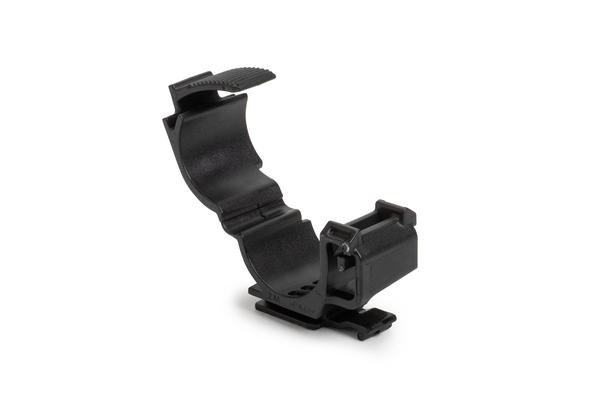

Ratchet O-Clamp
Číslo dílu 151-04350
| ROC18.5-22.5CLIP17-PA66HIRHSUV-BK
|
Copied
- Compact size for mounting in tight spaces
- Modular connector clip design eliminates the need for investment in expensive tools for TPE products or the upsetting of tubes and pipes
- Fine-pitch ratchet provides controlled grip for a range of pipe sizes with a single part
- Fully enclosed clamp prevents slipping, crushing, and fallout under vacuum
- Release latch opens with a simple twist of a screwdriver
ukázat více
Zobrazit méně
Vyžádat nabídku
Více výrobků v této skupině výrobků:
| Application | The Ratchet O-Clamp is designed for tight spaces, maintaining a low profile while providing an adjustable closure for a range of bundle sizes. HellermannTyton’s connector clips offer a unified solution for mounting connectors to various surfaces across a wide range of applications. Clips can be paired with brackets to support custom routing requirements. |
| Colour | Black (BK) |
| Fixation Method | Connector Clip |
| Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
| Min.Tensile Strength | 445N |
| PART DESCRIPTION | ROC18.5-22.5CLIP17-PA66HIRHSUV-BK |
| Package Content | 1000pcs. |
| Package Content packed in | carton |
| Product Family | with Connector Clip |
| Product Group | Ratchet O-Clamp |
| Type | ROC18.5-22.5CLIP17 |
| Type of connection | USCAR17 |
| UV-Stabilised | Yes |
