Right-Angle Shapes, MIL style : 1108-4-G

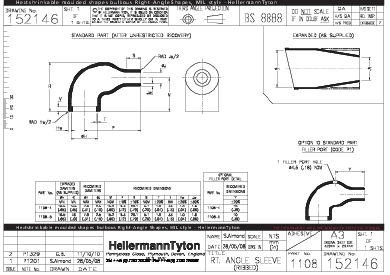

Right-Angle Shape MIL Style with Rib for Plugs black, PO-X, Číslo dílu: 411-08480

1108-4 supplied / fully recovered.

Vlastnosti

  • Used in conjunction with a circular grooved adaptor for strain relief

Certifikáty a normy

Použití

Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications

Helashrink 1100 Series, with rib je vhodný pro následující odvětví průmyslu

Application Tool H5002, H5004, E4500
Colour Black (BK)
Pack Cont. 1pc.
Package Quantity per pcs.
PART DESCRIPTION 1108-4-G-PO-X-BK
Product Family Helashrink 1100 Series, with rib
Product Group Right-Angle Shapes, MIL style
Short Description Right-Angle Shape MIL Style with Rib for Plugs black, PO-X
Type 1108-4-G
Variant For plug
Angle 90°
Flexibility Semi rigid
HW ± 20% 1.0mm
JO ± 10% 4.1mm
JW ± 20% 1.0mm
JW ± 30% 1.6mm
M nom 15.2mm
P ± 10% 17.3mm
R ± 10% 20.1mm
S nom 5.1mm
S ± 10% 15.2mm
T ± 10% 1.0mm
T ± 20% 1.0mm
V max 3.3mm
V ± 10% 3.0mm
W ± 20 % 1.0mm
∅H max b 7.9mm
∅H min a 16.5mm
∅J max b 3.8mm
∅J min. a 16.5mm
Dielectric Strength 14 kV/mm according to ASTM D2671
ELV compliant Dir. Art. 4 (2) YES
Flammability ASTM D635
Hazardous good No
Material Polyolefin, cross-linked (PO-X)
Minimum Shrink Temperature - °C +135 °C
Operating Temperature - °C -75 °C to +150 °C
Specifications
Tensile Strength 15MPa
EAN / GTIN 5022660410413
Packaging 1 - Height (m) 0.02m
Packaging 1 - Length (m) 0.13m
Packaging 1 - Qty 1
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00026
Packaging 1 - Weight (kg) 0.01kg
Packaging 1 - Width (m) 0.1m
Weight 0.01kg
ETIM 6.0 EC002464
ETIM 7.0 Key EC002464
