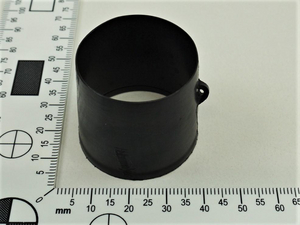

Bottle Shape with Rib VG-Style for Plugs black, PO-X
Číslo dílu 401-54780 | 154-41-G-PO-X-BK Podrobnosti na

  • Use in conjunction with circular grooved adaptors
  • Strengthened strain relief by usage of an additional inner lip
  • Excellent protection against environment impacts
  • Eliminates moisture ingress to harness

Vyžádejte si nyní individuální nabídku

Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Application Tool H6100, E4500, CHG900
Colour Black (BK)
Material Polyolefin, cross-linked (PO-X)
Pack Cont. 1pc.
Package Content packed in pcs.
PART DESCRIPTION 154-41-G-PO-X-BK
Product Family Helashrink 150 Series, with rib
Product Group Bottle Shapes, VG style
Short Description Bottle Shape with Rib VG-Style for Plugs black, PO-X
Variant For plug
Flexibility semi rigid
HW ± 20 % 1.8mm
JO ± 10 % 13.0mm
JW ± 20 % 1.0mm
JW ± 30 % 1.0mm
P ± 10 % 43.0mm
R nom. 20.0mm
R ± 10 % 20.0mm
S nom. 1.0mm
T ± 20 % 1.0mm
V max. 3.3mm
V ± 10 % 3.0mm
V ± 20% 3.0mm
Weight/Unit 0.01kg
∅H max. b 14.0mm
∅H min. a 30.0mm
∅J max. b 6.0mm
∅J min. a 30.0mm
Designation as per VG-Norm VG 95343 T06 A 003 A
Dielectric Strength 14kV/mm
Dielectric Strength test method ASTM D2671
ELV compliant (Article 4 - 2) YES
Flammability ASTM D635
Hazardous Goods No
Min. Shrink Temperature - °C +135 °C
Nato number 5970-01-272-5926, 5970-12-302-1587, 5970-99-020-7581
Operating Temperature -75 °C to +150 °C
Specifications
Specifications VG 95343-6
Country of Origin GB
Customs Number 39174000
GTIN-13 / EAN 5022660634741

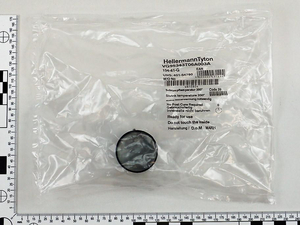

Packaging 1 - Height (m) 0.03m
Packaging 1 - Length (m) 0.18m
Packaging 1 - Qty 1
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.00086
Packaging 1 - Weight (kg) 0.010001kg
Packaging 1 - Width (m) 0.16m
ETIM 7.0 Key EC002464
ETIM 8.0 Key EC002464
ETIM 9.0 Key EC002464
UNSPSC Key 39121721
