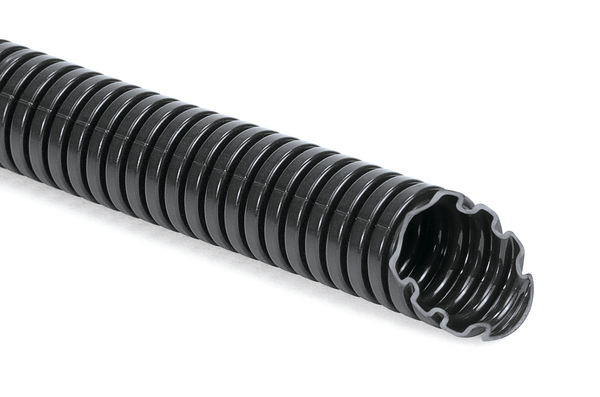

Corrugated tubing, fatigue resistant, nom⌀21mm, OD=21.2mm, ID=16.7mm, black, 50m
Číslo dílu 166-11503
| HG-HI21-PA12-BK
|
Copied
- Excellent fatigue life
- Very flexible
- Recovers form if crushed
- Good mechanical properties at low temperatures
- Highly resistant to solvents and oils
- Free of halogen, sulphur and phosphorus
- Self-extinguishing to IEC 61386
- Colour: black
ukázat více
Zobrazit méně
Vyžádat nabídku
Více výrobků v této skupině výrobků:
| Colour | Black (BK) |
| Key product features | fatigue resistant |
| Material | Polyamide 12 (PA12) |
| Min.Tensile Strength | 300N |
| PART DESCRIPTION | HG-HI21-PA12-BK |
| Package Content | 50m |
| Package Content packed in | reel |
| Pitch Type | fine |
| Product Family | HG-HI PA12 Conduit |
| Product Group | Non-Metallic Conduits |
| Short Description | Corrugated flexible conduit PA12 ø 21mm reel 50m |
| Type | HG-HI21 |
| Typical Application | PA12 corrugated flexible conduit for applications with continual movement and bending, including robotics and automation, rail, machine building and plant construction. |
| Weight/Unit | 0.0524kg |
| CE Certification | Yes |
| ELV compliant (Article 4 - 2) | Yes |
| EN61386 Classification | 13544066-110 |
| Flammability | EN IEC 61386 |
| Halogen-free | Yes |
| Hazardous Goods | No |
| IP-Rating | IP66 (in conjunction with HG fittings) |
| Oil resistant | Yes |
| Operating Temperature | -50 °C to +110 °C |
| Operating Temperature Moving | -50 °C to +110 °C |
| ROHS compliant | Yes |
| Self extinguishing | Yes |
| Specifications |
|
| Specifications | CSA -C22.2 No.227.3, IEC 61386 |
| UL File link | Odkaz |
| UL Recognized (US and Canada) | Yes |
| UL-File Number | E325250 |
|
|
|
| Country of Origin | GB |
| Customs Number | 39173200 |
| GTIN-13 / EAN | 4031026302669 |
| Packaging 1 - Height (m) | 0.18m |
| Packaging 1 - Length (m) | 0.45m |
| Packaging 1 - Qty | 50 |
| Packaging 1 - Type | reel |
| Packaging 1 - Volume (m³) | 0.003645m³ |
| Packaging 1 - Weight (kg) | 2.62kg |
| Packaging 1 - Width (m) | 0.045m |
| Packaging 3 - Type | carton |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 750 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Weight (kg) | 62.25kg |
| Packaging 4 - Width (m) | 0.8m |
| Reel Length | 50m |
