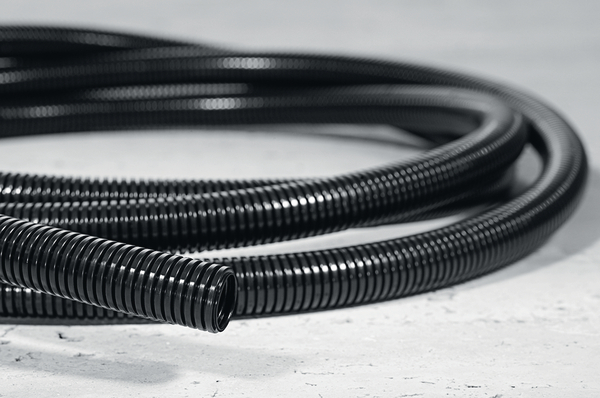

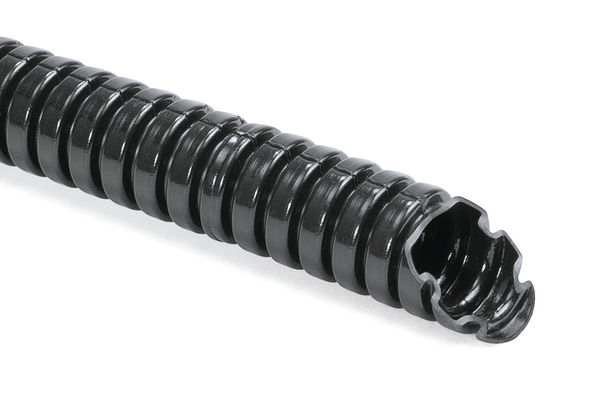

Light weight corrugated flexible conduit PA6 ø21mm reel 50m
Číslo dílu 166-11204 | HG-LW21-PA6-BK Podrobnosti na

  • Light weight
  • Very flexible and high fatigue life
  • Small bending radius
  • High impact strength and recovers if crushed
  • Highly resistant to solvents and oils
  • Free of halogen, sulphur and phosphorus
  • Colour: black; grey on request
ukázat více

Vyžádejte si nyní individuální nabídku

Application Light weight corrugated flexible conduit for machine building, plant construction, control panels and public buildings.
Application Tool CONCUTTER1, CONCUTTER2
Colour Black (BK)
Conduit Model Plastic corrugated
Material Polyamide 6 (PA6)
Pack Cont. 50m
Package Content packed in reel
PART DESCRIPTION HG-LW21-PA6-BK
Pitch Type fine
Product Family HG-LW PA6 Light Weight
Product Group Non-Metallic Conduits
Short Description Light weight corrugated flexible conduit PA6 ø21mm reel 50m
Bending Radius min. (R) 40mm
Diameter (D) 16.9mm
Inside Ø (ID) 16.9mm
Length (L) 50m
Nominal ∅ 21mm
Nominal ∅ 0.81"
NW ∅ 17mm
Outside Ø (OD) 21.2mm
Weight 56g/m
Weight/Unit 0.06kg
CE Certification Yes
ELV compliant (Article 4 - 2) YES
EN61386 Classification 24244066-110
Flammability EN IEC 61386
Halogen-free Yes
Hazardous Goods No
IP-Rating IP66 (in conjunction with HG fittings)
Oil resistant (Yes/No) Yes
Operating Temperature -40 °C to +120 °C
Operating Temperature Moving -20 °C to +100 °C
Self extinguishing Yes
Specifications
Specifications ANSI/UL 1696, csa-C22.2 No.227.3
UL OCD link Odkaz
UL-File Number E325250
Country of Origin GB
Customs Number 39173200
GTIN-13 / EAN 4031026302430
Packaging 1 - Height (m) 0.22m
Packaging 1 - Length (m) 0.43m
Packaging 1 - Qty 50
Packaging 1 - Type reel
Packaging 1 - Volume (m³) 0.04068
Packaging 1 - Weight (kg) 3.0kg
Packaging 1 - Width (m) 0.43m
Packaging 3 - Qty 1100
Packaging 3 - Type carton
Packaging 4 - Height (m) 0.964m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 700
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 0.925
Packaging 4 - Weight (kg) 94.88kg
Packaging 4 - Width (m) 0.8m
Reel Length 50m
ETIM 7.0 Key EC001175
ETIM 8.0 Key EC001175
ETIM 9.0 Key EC001175
