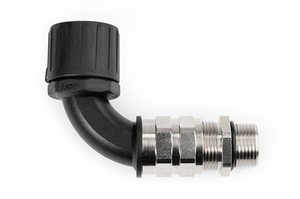

Fitting for corrugated tubing, nom⌀16mm, M16, 90°, black, 10pcs.
Číslo dílu 166-23302
| HG16-90CG-M16-PA66/NPB-BK
|
Copied
- Provides strain relief
- Seals cable at IP68 and IP69k
- High pull-off strength
- Highly resistant to solvents and oils
- Free of halogen, sulphur and phosphorus
ukázat více
Zobrazit méně
Vyžádat nabídku
Více výrobků v této skupině výrobků:
| Application | 90° elbow fitting with cable seal and strain relief. |
| Brass Thread (Y/N) | Yes |
| Cable ⌀ max | 10mm |
| Cable ⌀ min | 4.5mm |
| Colour | Black (BK) |
| Material | Polyamide 6.6 (PA66), Nickel Plated Brass (NPB) |
| PART DESCRIPTION | HG16-90CG-M16-PA66/NPB-BK |
| Package Content | 10pcs. |
| Package Content packed in | bag |
| Product Family | HG-90CG 90° Elbow fitting, IP66 |
| Product Group | Fittings with strain relief and cable seal |
| Short Description | Elbow Fitting 90° with Strain Relief and Cable Seal IP66 ø16mm M16 |
| Strain Relief Function (Y/N) | Yes |
| Swivel Thread (Y/N) | No |
| Thread type | metric |
| Type | HG16-90CG-M16 |
| Type of connection | Snap-connection |
| Variant | 90°-Bend |
| Weight/Unit | 0.056kg |
| CAS Number | 7439-92-1 |
| Critical Substance |
Lead in Copper alloy |
| EC Number | 231-100-4 |
| ELV compliant (Article 4 - 2) | Yes |
| Flammability | UL 94 V2 |
| Halogen-free | Yes |
| Hazardous Goods | No |
| IP-Rating | IP66 (in conjunction with HG fittings) |
| Operating Temperature | -50 °C to +135 °C |
| ROHS compliant | Yes |
| Specifications |
|
| Specifications | UL-Recognized |
|
|
|
| Country of Origin | GB |
| Customs Number | 74122000 |
| GTIN-13 / EAN | 4031026407692 |
| Packaging 1 - Height (m) | 0.03m |
| Packaging 1 - Length (m) | 0.26m |
| Packaging 1 - Qty | 10 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.00156m³ |
| Packaging 1 - Weight (kg) | 0.560001kg |
| Packaging 1 - Width (m) | 0.2m |
| Packaging 2 - Height (m) | 0.216m |
| Packaging 2 - Length (m) | 0.3048m |
| Packaging 2 - Type | carton |
| Packaging 2 - Volume (m³) | 0.0176m³ |
| Packaging 2 - Width (m) | 0.267m |
