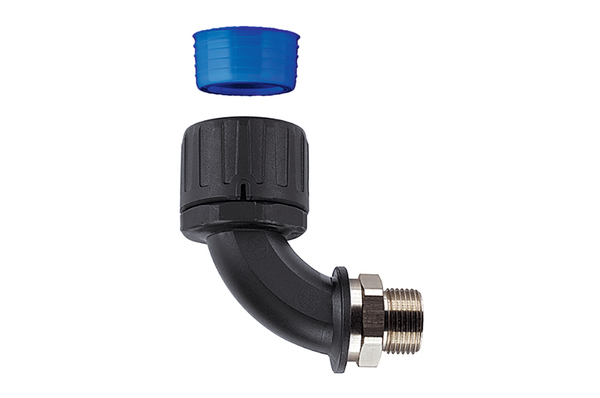

Fitting for corrugated tubing, nom⌀34mm, M32, 90°, black, 10pcs.
Číslo dílu 166-23105
| HGL34-90M-M32-PA66/NPB/TPE-BK
|
Copied
- One piece, fast fit
- High pull-off strength
- Highly resistant to solvents and oils
- Free of halogen, sulphur and phosphorus
Vyžádejte si nyní individuální nabídku
Vyžádat nabídku
Více výrobků v této skupině výrobků:
| Application |
90° elbow swivel brass external thread with conduit seal and washer. Fulfils IP66, IP67, IP68 and IP69k. |
| Brass Thread (Y/N) | Yes |
| Colour | Black (BK) |
| Material | Polyamide 6.6 (PA66), Nickel Plated Brass (NPB), Thermoplastic Elastomer (TPE) |
| PART DESCRIPTION | HGL34-90M-M32-PA66/NPB/TPE-BK |
| Package Content | 10pcs. |
| Package Content packed in | bag |
| Product Family | HGL-90M 90° Elbow fitting, IP68 |
| Product Group | Fittings with swivel external thread |
| Short Description | Elbow Fitting 90° with Swivel External Thread IP68 ø34mm M32 |
| Strain Relief Function (Y/N) | No |
| Swivel Thread (Y/N) | Yes |
| Thread type | metric |
| Type | HGL34-90M-M32 |
| Type of connection | Snap-connection |
| Variant | 90°-elbow |
| Weight/Unit | 0.107kg |
Stáhnout
| CAS Number | 7439-92-1 |
| Critical Substance |
Lead in Copper alloy |
| EC Number | 231-100-4 |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 V2 |
| Halogen-free | Yes |
| Hazardous Goods | No |
| IP-Rating | IP66, IP67, IP68, IP69k |
| Operating Temperature | -50 °C to +135 °C |
| ROHS compliant | Yes |
| Specifications |
|
| Specifications | UL-Recognized |
|
|
|
| Country of Origin | GB |
| Customs Number | 74122000 |
| GTIN-13 / EAN | 4031026304724 |
| Packaging 1 - Height (m) | 0.08m |
| Packaging 1 - Length (m) | 0.33m |
| Packaging 1 - Qty | 10 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.0066m³ |
| Packaging 1 - Weight (kg) | 1.070001kg |
| Packaging 1 - Width (m) | 0.25m |
| Packaging 2 - Height (m) | 0.216m |
| Packaging 2 - Length (m) | 0.3048m |
| Packaging 2 - Type | carton |
| Packaging 2 - Volume (m³) | 0.0176m³ |
| Packaging 2 - Width (m) | 0.267m |
HG-SW34
166-11118
HG-LW34
166-11206
HG-HW34
166-11306
HG-FR34
166-11405
HG-HI34
166-11505
HG-DC34
166-11805
