Accessory for HTWD-RT4, HelaDuct, blue, 1000pcs. (HTWD-R4)
Číslo dílu 181-42400
| HTWD-R4-PA6-BU
|
Copied
- Very good mechanical properties
- Good resistance to vibration
- Easily and rapidly applied with HTWD-RT4 and HTWD-RT6 rivet tools
- Colour-coded for easy identification for use with rivet tools
Vyžádejte si nyní individuální nabídku
Vyžádat nabídku
Více výrobků v této skupině výrobků:

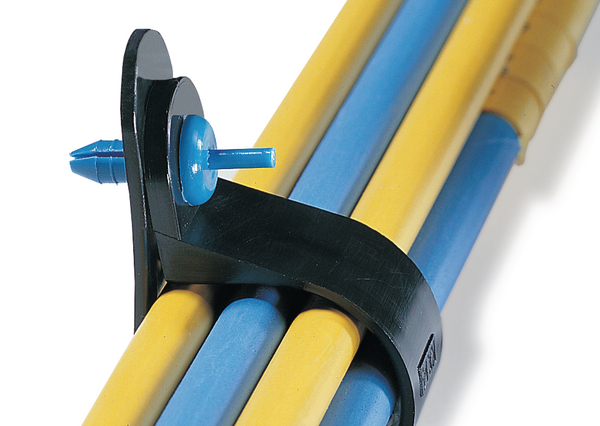

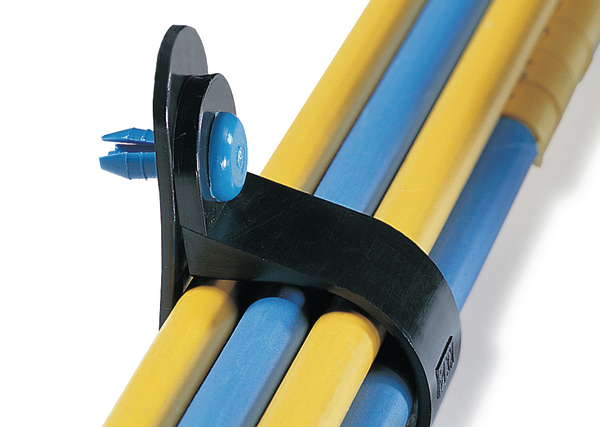

| Application | HTWD-R4 and HTWD-R6 are used to rapidly mount and secure wiring ducts into fixing holes without the use of screws. |
| Colour | Blue (BU) |
| Material | Polyamide 6 (PA6) |
| PART DESCRIPTION | HTWD-R4-PA6-BU |
| Package Content | 1000pcs. |
| Package Content packed in | pcs. |
| Product Family | HelaDuct HTWD-R4 and HTWD-R6 rivets |
| Product Group | For installing wiring ducts into fixing holes |
| Short Description | Wiring duct rivet, 3.8 - 4.2 mm, PA6, blue |
| Type | HTWD-R4 |
| Weight/Unit | 0.0005kg |
Stáhnout
|
|
|
| Country of Origin | IT |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026567235 |
| Packaging 1 - Height (m) | 0.09m |
| Packaging 1 - Length (m) | 0.83m |
| Packaging 1 - Qty | 250 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.01494m³ |
| Packaging 1 - Weight (kg) | 0.125001kg |
| Packaging 1 - Width (m) | 0.2m |
| Packaging 3 - Height (m) | 0.09m |
| Packaging 3 - Length (m) | 0.83m |
| Packaging 3 - Qty | 1000 |
| Packaging 3 - Type | carton |
| Packaging 3 - Volume (m³) | 0.0149m³ |
| Packaging 3 - Weight (kg) | 0.800004kg |
| Packaging 3 - Width (m) | 0.2m |
| Packaging 4 - Height (m) | 1.224m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 48000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.175m³ |
| Packaging 4 - Weight (kg) | 59.4kg |
| Packaging 4 - Width (m) | 0.8m |
