Meet the ATS flex!
Discover fast and waste-free bundling with the latest Autotool model
Unbeatable performance – fully waste-free

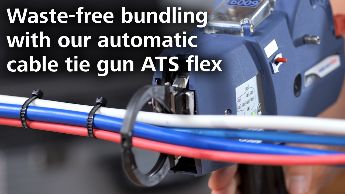

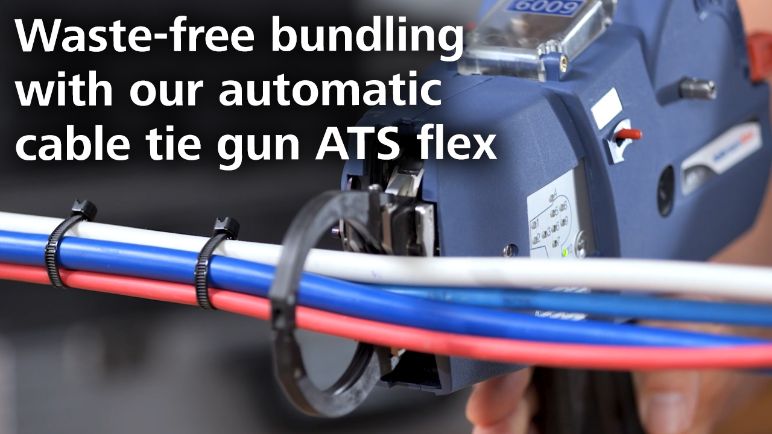

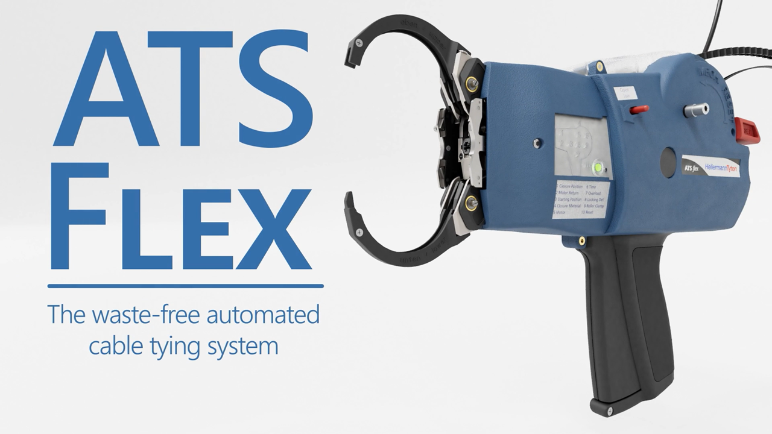

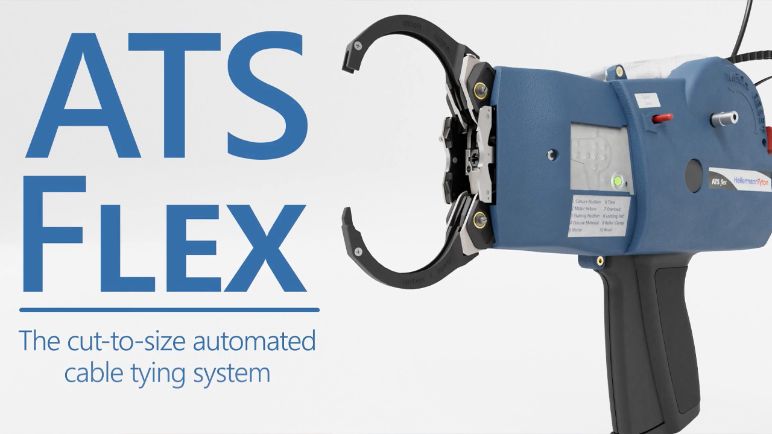

ATS flex is an automated and process-reliable cable-tying system, that bundles waste free. This unique tool processes cable ties much quicker than application by hand.
ATS flex benefits at a glance:
- Fast & reliable automatic bundling process due to automatic jaw calibration and integrated jaw closure detection
- Ties up to a diameter of 100 mm
- Waste-free bundling
- Communication via interface
- Automated process control or control of the manufacturing process
- Combination of two colors possible for sealing head & tie
May we introduce …

-
ATS_flex
102-60000
Waste-free bundling up to Ø 100 mm -
Power_pack_ATS_flex_24V
102-00150
Waste-free bundling up to Ø 100 mm -
Bench_mount_kit_ATS
102-00040
Waste-free bundling up to Ø 100 mm -
Overhead_suspension_ATS
102-00050
Waste-free bundling up to Ø 100 mm -
Strap_Natural_ATS
102-66109
Waste-free bundling up to Ø 100 mm -
Strap_Black_ATS
102-66110
Waste-free bundling up to Ø 100 mm -
Closures_Natural_ATS
102-66209
Waste-free bundling up to Ø 100 mm
ATS flex = automatic waste-free bundling

Fast & reliable automatic bundling process
The correct jaws size and speed are set out automatically during commissioning - better process quality thanks to the optimised bundling process – patended!
Looping, threading, tensioning and cutting off at the touch of a button with consistent quality
Integrated jaw closure detection: Closure of cable ties checked by pliers locking by means of a sensor.

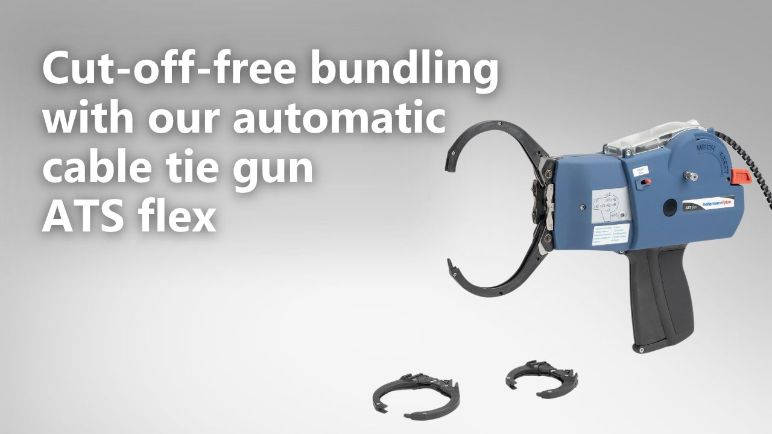

Ties up to a diameter of 100 mm possible: three quick-change jaw sizes in diameters 30 mm, 50 mm, 80 mm included, additional jaw size available in 100 mm – Ideally suited for large-scale production.
Waste-free bundling: Disposal time and costs are eliminated, e.g. 326.250 bindings avoid 219 kg waste, 3.915.000 bindings avoid 2.630 kg waste.
Communication via interface: Better integration into an automated PLC-controlled production line (due to 24 V).
Automated process control or control of the manufacturing process: Storage of up to 100,000 data sets (e.g. moisture,
temperature, jaw size, motor load, sensor status of jaw locking check device) - can be read out by HellermannTyton.
Combination of two colors of closure head & strap possible (security seal, product piracy), tie to date black, natural,
on request in red, green, yellow, blue; binder head to date in black, natural, red, green, other colors on request.
