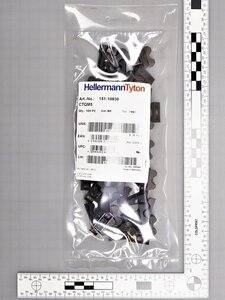

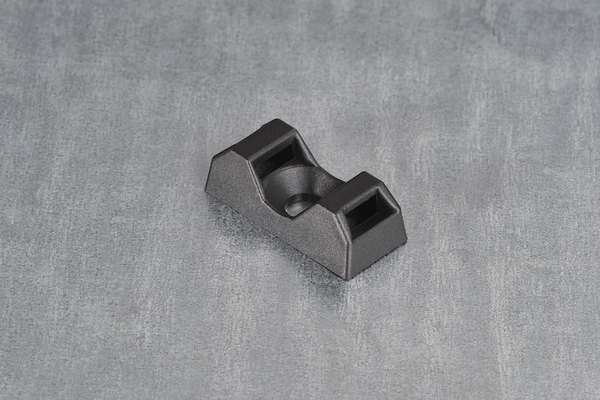

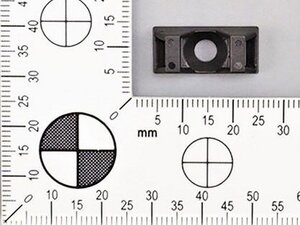

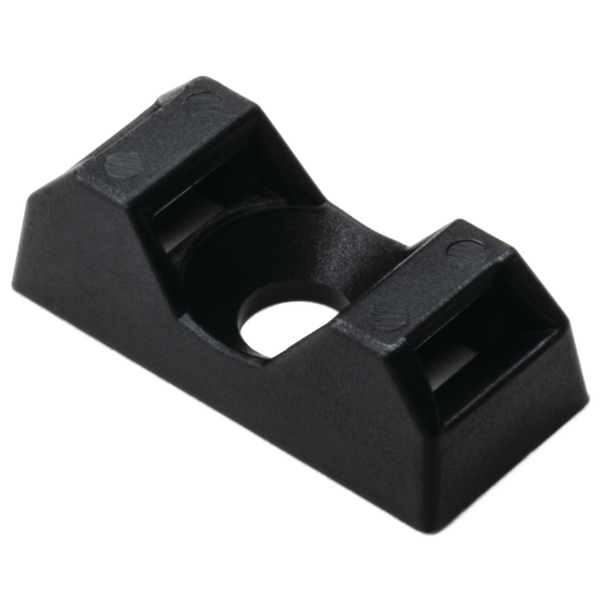

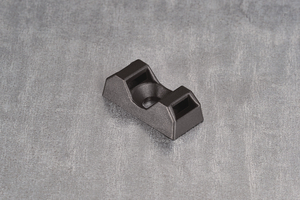

Cable tie mount for screw fixation, Wmax=5.0mm, ⌀4.5 mm, M4 Screw, black, 100pcs.
Číslo dílu 151-10930
| CTQM5-PA66-BK
|
Copied
- 2-way mounting base for safe guiding of cables and conduits
- For cable ties up to 5 mm width
- Uses screw with countersunk head (max. ø of head: 8.0 mm)
- Pre-assembly feature in combination with cable tie
- Holds the cable tie in vertical mounting position
Vyžádejte si nyní individuální nabídku
Vyžádat nabídku
Více výrobků v této skupině výrobků:
| Application | CTQM mounts are the ideal choice for applications that require reliable, permanent mounting - especially in confined or space-restricted environments. |
| Colour | Black (BK) |
| Fixation Method | Screw Mount |
| For Ties | Q-Ties |
| Material | Polyamide 6.6 (PA66) |
| Mounting Screw Type | M4 Screw |
| PART DESCRIPTION | CTQM5-PA66-BK |
| Package Content | 100pcs. |
| Package Content packed in | pack |
| Product Family | CTQM-series |
| Product Group | Screw fixing cable tie mounts CTQM for limited space |
| Short Description | Screwable Fixing Mount 21x9.5 black |
| Type | CTQM5 |
| UV-Stabilised | No |
| Weight/Unit | 0.000441kg |
Stáhnout
| CE Certification | No |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 V2 |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +85 °C |
| ROHS compliant | Yes |
| Specifications |
|
|
|
Source products are manufactured with plastics recovered from recycled waste or marine environments, derived from renewable plant-based sources, or use materials with lower equivalent emissions. HellermannTyton also offers product solutions that – by design – reduce waste or support reusability and recyclability. Sustainable design focuses on product solutions that reduce or avoid waste, i.e. products that can be completely or partially dismantled and repositioned, thus supporting reuse and recyclability. Longevity is not part of this. |
| Specifications | ANSI/UL 1565, ANSI/UL 62275, ANSI/UL 746B |
| UL File link | Odkaz |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | Yes |
| UL Recognized (US) | Yes |
| UL-File Number | E65344 |
|
|
|
| Country of Origin | DE |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026413822 |
| Packaging 1 - Height (m) | 0.02m |
| Packaging 1 - Length (m) | 0.275m |
| Packaging 1 - Qty | 100 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.00066m³ |
| Packaging 1 - Weight (kg) | 0.04961kg |
| Packaging 1 - Width (m) | 0.12m |
| Packaging 3 - Height (m) | 0.171m |
| Packaging 3 - Length (m) | 0.56m |
| Packaging 3 - Qty | 3000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0172m³ |
| Packaging 3 - Weight (kg) | 1.7953kg |
| Packaging 3 - Width (m) | 0.18m |
| Packaging 4 - Height (m) | 1.171m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 144000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.124m³ |
| Packaging 4 - Weight (kg) | 107.88kg |
| Packaging 4 - Width (m) | 0.8m |
