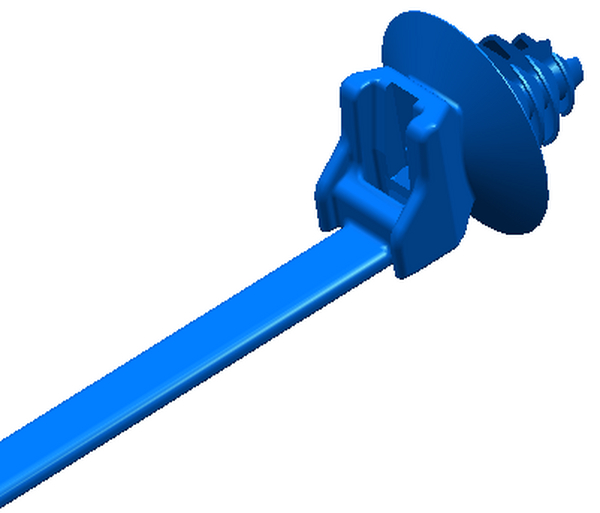

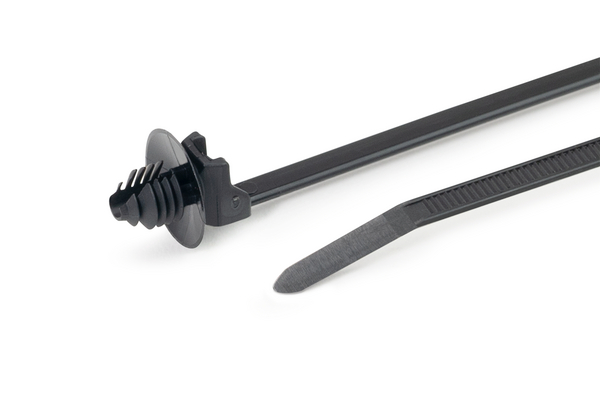

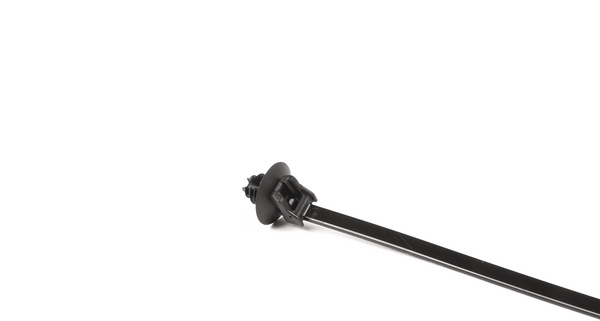

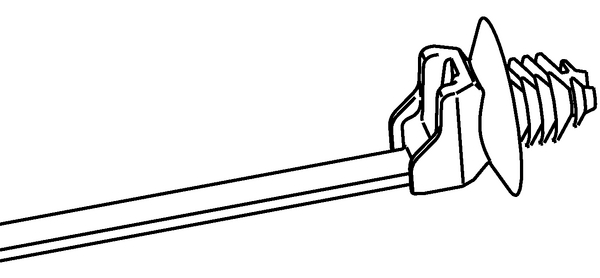

1-Piece Fixing Ties with Fir Tree, with Disc, for Round Holes : T50SOSFT6E
1-Piece Fixing Tie with Fir Tree and Disc Fixing Tie 160x4.6 black, Číslo dílu: 155-05800
Vlastnosti
- Cable tie head always situated in defined position
- Easy to assemble without the need for a tool
- Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
- Fir tree foot part can be used for a variety of panel thicknesses
- Suitable for use within threaded holes
Certifikáty a normy
Použití
Primarily designed for fixing cable harnesses in the automotive industry, their simplicity and ease of use has resulted in these parts being used in other industries, for example aviation, switch gear and white goods manufacturing.
Fir Tree Parts FT6 je vhodný pro následující odvětví průmyslu
-
Solar Energy Sector
-
Wind Energy Sector
-
Rail Transportation Sector
-
Shipbuilding
-
Defence Industry
-
Automotive Industry
Více výrobků v této skupině výrobků
1-Piece Fixing Ties with Fir Tree, with Disc, for Round Holes >| Anti rotation (Yes / No) | NO |
| Application Tool | MK3PNSP2, MK3SP, MK6, MK7HT, MK7P, MK20, MK21, EVO7, EVO9 |
| Colour | Black (BK) |
| Fixation Method | Fir Tree |
| Identification Plate Position | none |

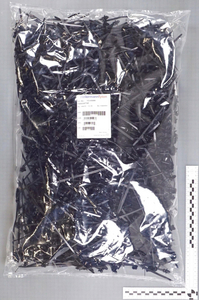

| Pack Cont. | 1500pcs. |
| Package Quantity per | Bag |
| PART DESCRIPTION | T50SOSFT6E-PA66HIRHS-BK |
| Product Family | Fir Tree Parts FT6 |
| Product Group | 1-Piece Fixing Ties with Fir Tree, with Disc, for Round Holes |
| Releasable Closure (Yes/No) | No |
| Short Description | 1-Piece Fixing Tie with Fir Tree and Disc Fixing Tie 160x4.6 black |
| Tie Closure | plastic pawl |
| Type | T50SOSFT6E.HB6P |
| Variant | Outside Serrated |
|
|
| Bundle ∅ max. | 32.0mm |
| Bundle ∅ min. | 1.6mm |
| Disc ∅ | 16.0mm |
| for Hole ∅ (FH) | 6.5 - 7.0 mm |
| for Panel Thickness min - max | 0.8 - 3 mm |
| for Panel Thickness min - max | 0 - 0.1 " |

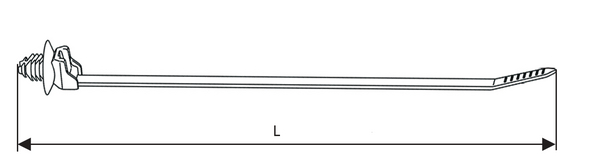

| Length (L) | 160mm |
| Length of Fir Tree | 8.4mm |
| Min.Tensile Strength | 150N |
| Panel Thickness max. | 0.75 – 3.0mm |
| Thickness (T) | 1.35mm |
| Width (W) | 4.7mm |
| Cable Tie | Polyamide 6.6, heat stabilised (PA66HS) |
| ELV compliant Dir. Art. 4 (2) | YES |
| Hazardous good | No |
| Material | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| Operating Temperature - °C | -40 °C to +105 °C, (+145 °C, 500 h) |
| Specifications |
|
|
|
|
| EAN / GTIN | 4031026215983 |
| Packaging 1 - Height (m) | 0.3m |
| Packaging 1 - Length (m) | 0.625m |
| Packaging 1 - Qty | 1500 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.0825m³ |
| Packaging 1 - Weight (kg) | 2.079216kg |
| Packaging 1 - Width (m) | 0.44m |
| Packaging 3 - Height (m) | 0.538m |
| Packaging 3 - Length (m) | 0.584m |
| Packaging 3 - Qty | 7500 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.1213m³ |
| Packaging 3 - Weight (kg) | 11.49608kg |
| Packaging 3 - Width (m) | 0.386m |
| Packaging 4 - Height (m) | 1.221m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 60000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.172m³ |
| Packaging 4 - Weight (kg) | 112.96kg |
| Packaging 4 - Width (m) | 0.8m |
| Weight | 1.995kg |
| ETIM 6.0 | EC000046 |
| ETIM 7.0 Key | EC000046 |
| UNSPSC Key | 39121717 |
