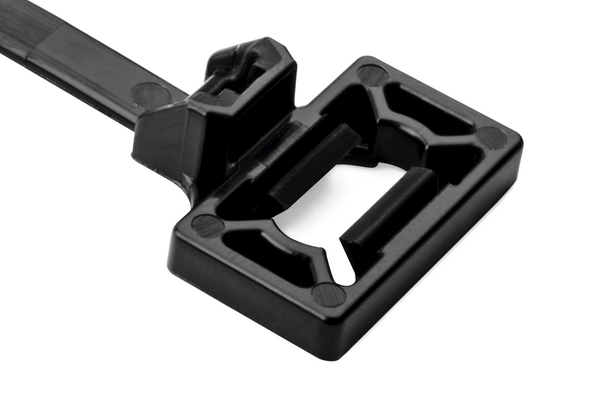

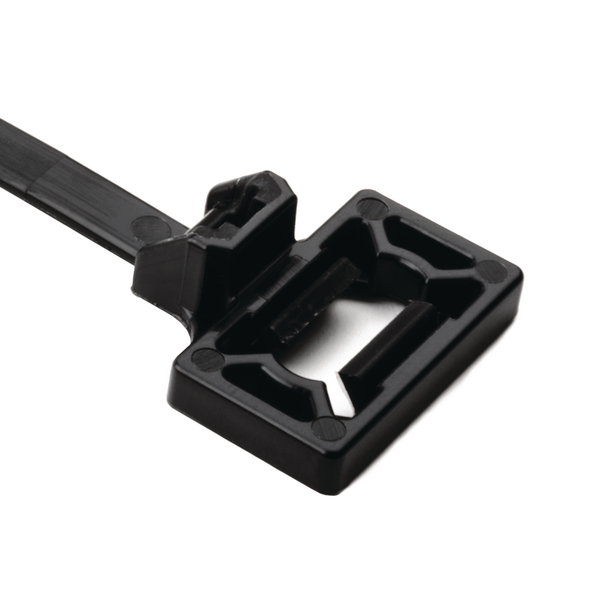

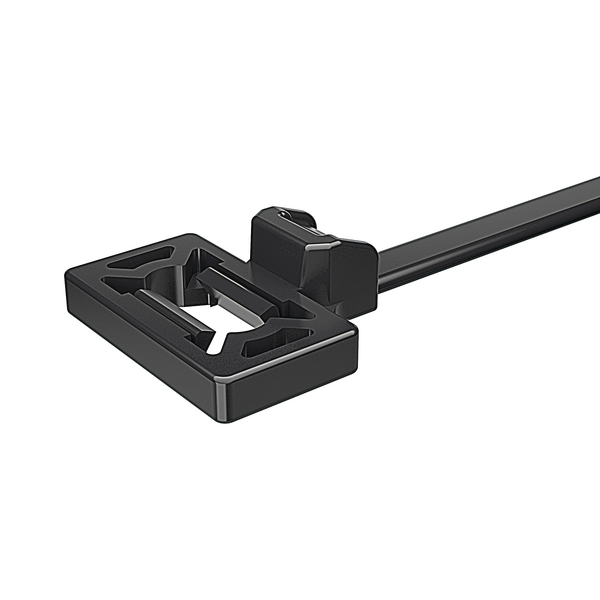

Fixing tie for stud, outside serrated, ⌀1.0-35.0mm, black, 500pcs.
Číslo dílu 157-00226
| T50SOSWSP5E-PA66HS-BK
|
Copied
- Cable tie head always situated in defined position
- Easy to install without the need for a tool
- Provides a 5 – 6 mm lateral adjustment possibility

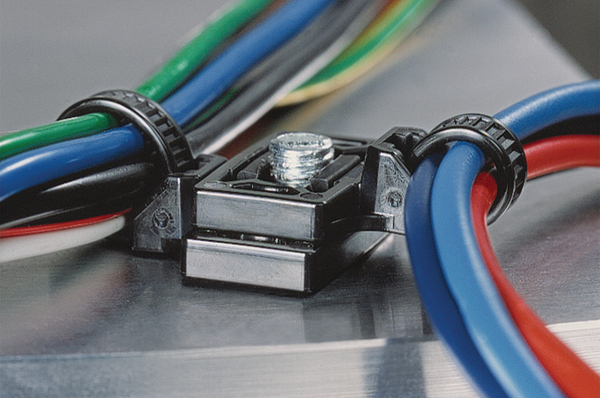

- Very low profile, stackable design

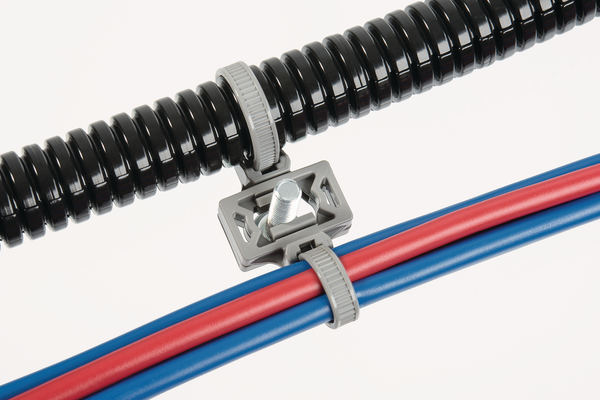

- For bundles which need to be routed in different directions
ukázat více
Zobrazit méně
Vyžádat nabídku
Více výrobků v této skupině výrobků:
Tento produkt je součástí:
| Application | Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where weld studs or ISO bolts are used and cables need to be bundled and secured. |
| Colour | Black (BK) |
| Ergonomy Feature |
≤ 30 N assembly force: Product fulfills defined assembly force requirements. Details and tolerances as per technical drawing. Actual force may vary depending on the surface, assembly situation and accessibility. Verify applicability under real conditions before use to ensure applicability for the intended purpose. |
| Fixation Method | Stud Mount |
| Identification Plate Position | none |
| Key product features | ergonomic design |
| Material | Polyamide 6.6, heat stabilised (PA66HS) |
| Min.Tensile Strength | 200N |
| PART DESCRIPTION | T50SOSWSP5E-PA66HS-BK |

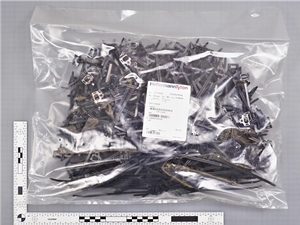

| Package Content | 500pcs. |
| Package Content packed in | pack |
| Product Family | WSP-Serie |
| Product Group | 1-Piece Fixing Ties for Weld , moveable |
| Releasable Closure (Yes/No) | No |
| Short Description | 1-Piece fixing tie 163x4.6 mm, for weld, stud size 5 mm, moveable, heat stabilised, black |
| Tie Closure | plastic pawl |
| Type | T50SOSWSP5E |
| UV-Stabilised | No |
| Variant | Outside Serrated |
| Weight/Unit | 0.001653kg |
| CE Certification | No |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | Yes |
| Flammability | UL 94 V2 |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +105 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
|
|
|
| Country of Origin | GB |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 5022660344558 |
| Packaging 1 - Height (m) | 0.08m |
| Packaging 1 - Length (m) | 0.41m |
| Packaging 1 - Qty | 500 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.015744m³ |
| Packaging 1 - Weight (kg) | 0.8635kg |
| Packaging 1 - Width (m) | 0.48m |
| Packaging 3 - Height (m) | 0.368m |
| Packaging 3 - Length (m) | 0.584m |
| Packaging 3 - Qty | 5000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.083m³ |
| Packaging 3 - Weight (kg) | 9.5058kg |
| Packaging 3 - Width (m) | 0.386m |
| Packaging 4 - Height (m) | 1.248m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 60000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.198m³ |
| Packaging 4 - Weight (kg) | 136.072kg |
| Packaging 4 - Width (m) | 0.8m |
