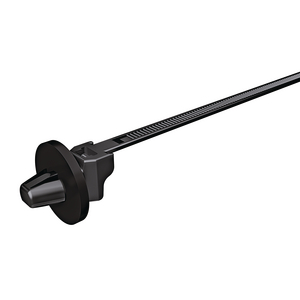

Fixing tie for hole (round), outside serrated, ⌀4.0-45.0mm, black, 500pcs.
Číslo dílu 156-00379 | T50XROSSFT6.5-E-MDL-PA66HS-BK |

Copied
1-piece fixing tie with arrowhead for round holes sealed.
T50SOSSFT6.5E-MDL
The additional seal protects against the ingress of moisture.
One piece fixing tie with arrowhead and disc, standard design

    • One-piece fixing ties with cellular rubber disc
    • Especially suitable for door and tailgate harnesses used for car body applications
    • Made from PA66 heat-stabilised material
    • Cellular rubber disc minimises access of dust, dirt and water
    Přidat do sledovaných položek

    Vyžádejte si nyní individuální nabídku

     Vyžádat nabídku
    Downloads CAD-Download
    Application The parts are mainly used in the automotive industry. This fastening solution is used to secure cable harnesses e.g. in car doors . We offer a variety of panel thicknesses and hole sizes to suit all kinds of application. The seal protects the interior and surrounding cables among other things from splash water.
    Colour Black (BK)
    Fixation Method arrowhead
    Identification Plate Position none
    Material Polyamide 6.6, heat stabilised (PA66HS)
    Min.Tensile Strength 200N
    PART DESCRIPTION T50XROSSFT6.5-E-MDL-PA66HS-BK
    Package Content 500pcs.
    Package Content packed in bag
    Product Family for round holes, sealed
    Product Group 1-Piece Fixing Ties with Arrowhead, with Disc, sealed
    Releasable Closure (Yes/No) No
    Short Description 1-Piece fixing tie 200x4.6 mm, with arrowhead, heat stabilised, black
    Tie Closure plastic pawl
    Type T50XROSSFT6.5-E-MDL
    Variant Outside Serrated
    Weight/Unit 0.001893kg
    Bundle ⌀ 4.0-45.0mm
    Bundle ⌀ max. 45.0mm
    Bundle ⌀ min. 4.0mm
    Disc ⌀ 16.0mm
    Length (L) 200.0mm
    Thickness (T) 1.3mm
    Width (W) 4.6mm
    for Hole ⌀ (FH) 6.1 - 6.6 mm (hexagonal), 6.25 - 6.75 mm
    for Panel Thickness min - max 1.2 - 2.1 mm
    for Panel Thickness min - max 0.1 - 0.1 "
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V2
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    Country of Origin DE
    Customs Number 39269097
    GTIN-13 / EAN 4031026289632
    Packaging 1 - Height (m) 0.08m
    Packaging 1 - Length (m) 0.37m
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.009176m³
    Packaging 1 - Weight (kg) 0.975635kg
    Packaging 1 - Width (m) 0.31m
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 4000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 8.62508kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 48000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 124.488kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
