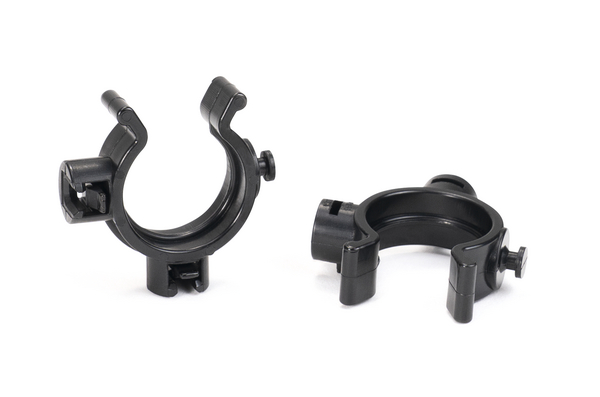

Accessory for HWBASE, HWPA-V020, Helawrap, black, 50pcs. (HWCLIP20)
Číslo dílu 161-64006
| HWCLIP20-PA66HIRHS-BK
|
Copied
- Mounts and routes Helawrap cable cover flexibly and efficiently
- Fit snugly around the cable cover and holds it tight
- Each clip can be joined to mounting plate or other clips of any size
- Each clip rotates freely
- Easily released and re-used
ukázat více
Zobrazit méně
Vyžádat nabídku
Více výrobků v této skupině výrobků:
Tento produkt je součástí:
| Application |
To complete the Helawrap cable management system various Helawrap Clips in compatible sizes are available. The mounting clips can be combined and adjusted individually. Attached to a mounting base the assembly can be screw mounted or directly sticked to the surface. |
| Application Method | Place cables in applicator, then zip through cover sleeve. |
| Colour | Black (BK) |
| Fixation Method | Plug-in mounting |
| Material | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| PART DESCRIPTION | HWCLIP20-PA66HIRHS-BK |
| Package Content | 50pcs. |
| Package Content packed in | pack |
| Product Family | HWClips |
| Product Group | Accessories for Helawrap Cable Cover |
| Short Description | Fixing clip PA66HIRHS nominal ⌀ 20mm black |
| Type | HWCLIP20 |
| UV-Stabilised | No |
| Weight/Unit | 0.00247kg |
| CE Certification | No |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | Yes |
| Flammability | UL 94 HB |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Melting Point | +284 °F (+140 °C) |
| Operating Temperature | -40 °C to +105 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
|
|
|
| Country of Origin | DE |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026268620 |
| Packaging 1 - Height (m) | 0.04m |
| Packaging 1 - Length (m) | 0.12m |
| Packaging 1 - Qty | 50 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.001272m³ |
| Packaging 1 - Weight (kg) | 0.129026kg |
| Packaging 1 - Width (m) | 0.265m |
| Packaging 3 - Height (m) | 0.184m |
| Packaging 3 - Length (m) | 0.58m |
| Packaging 3 - Qty | 2000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0406m³ |
| Packaging 3 - Weight (kg) | 5.76104kg |
| Packaging 3 - Width (m) | 0.38m |
| Packaging 4 - Height (m) | 1.248m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 48000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.198m³ |
| Packaging 4 - Weight (kg) | 160.72kg |
| Packaging 4 - Width (m) | 0.8m |
