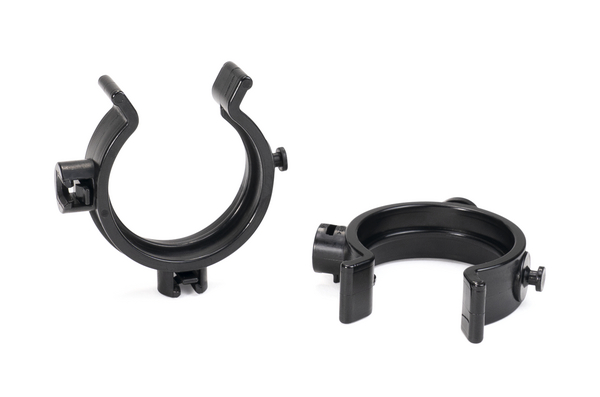

Accessory for HWBASE, HWPA-V030, Helawrap, black, 50pcs. (HWCLIP30)
Číslo dílu 161-64010 | HWCLIP30-PA66HIRHS-BK |

Copied
HelaWrap - HWClip30.
HelaWrap self-adhesive and screw mount bases and clips.
HWPP is commonly used wherever high flexibility is required, such as in the door area of wiring panels.
Multiple clips can be joined. Clips swivel freely.
For secure hold, R1 loop can be used (for HWClip25 and HWClip30 only).

    • Mounts and routes Helawrap cable cover flexibly and efficiently
    • Fit snugly around the cable cover and holds it tight
    • Each clip can be joined to mounting plate or other clips of any size
    • Each clip rotates freely
    • Easily released and re-used
    Přidat do sledovaných položek

    Vyžádejte si nyní individuální nabídku

     Vyžádat nabídku
    Downloads
    Application To complete the Helawrap cable management system various Helawrap Clips in compatible sizes are available.
    The mounting clips can be combined and adjusted individually. Attached to a mounting base the assembly can be screw mounted or directly sticked to the surface.
    Application Method Place cables in applicator, then zip through cover sleeve.
    Colour Black (BK)
    Fixation Method Plug-in mounting
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION HWCLIP30-PA66HIRHS-BK
    Package Content 50pcs.
    Package Content packed in pack
    Product Family HWClips
    Product Group Accessories for Helawrap Cable Cover
    Short Description Fixing clip PA66HIRHS nominal ⌀ 30mm black
    Type HWCLIP30
    UV-Stabilised No
    Weight/Unit 0.004kg
    ⌀ D 1.22"
    Diameter (D) 31mm
    Nominal ⌀ 1.25"
    Nominal ⌀ 30.0mm
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Halogen-free Yes
    Hazardous Goods No
    Melting Point +284 °F (+140 °C)
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin DE
    Customs Number 39269097
    GTIN-13 / EAN 4031026268668
    Packaging 1 - Height (m) 0.1m
    Packaging 1 - Length (m) 0.22m
    Packaging 1 - Qty 50
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00528m³
    Packaging 1 - Weight (kg) 0.20898kg
    Packaging 1 - Width (m) 0.24m
    Packaging 3 - Height (m) 0.184m
    Packaging 3 - Length (m) 0.58m
    Packaging 3 - Qty 1200
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0406m³
    Packaging 3 - Weight (kg) 5.61552kg
    Packaging 3 - Width (m) 0.38m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 28800
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 155.784kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000368
    ETIM 8.0 Key EC000368
    ETIM 9.0 Key EC000368
    UNSPSC Key 39131604
